Description:

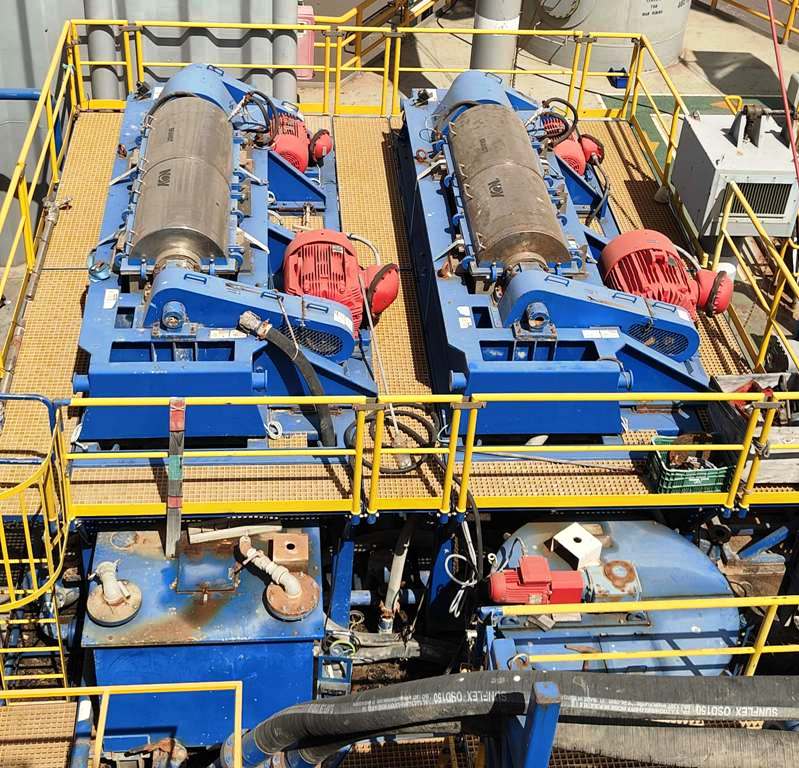

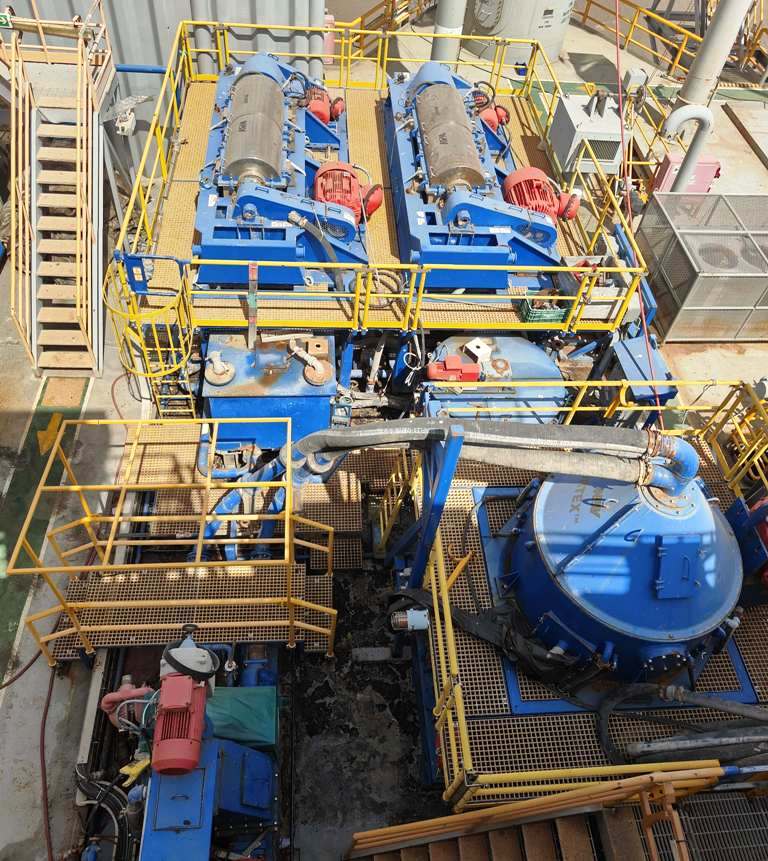

Max bowl speed 3000 RPM, 2750 x G, rated @ 500 GPM max. 360 degree cake ports with wear liners, adjustable liquid ports, 6.25" single lead STC-tiled axial/radial conveyor and carbide-lined feed nozzles. 150 HP XP motor 460/3/60/1750 RPM, 40 HP backdrive, 8 kNm 48:1 planetary gearbox with overload clutch, feed tube, guards, vibration switch and isolators, chutes, 40 HP feed pump, unitized on a stand with XP control panel. 2019 vintage. Entire system includes EB-36 dryer (#12130), (2) HS-2172 centrifuges, VFDs, pumps, tanks, controls and accessories shown in attached photos. Very good condition. Located in India.

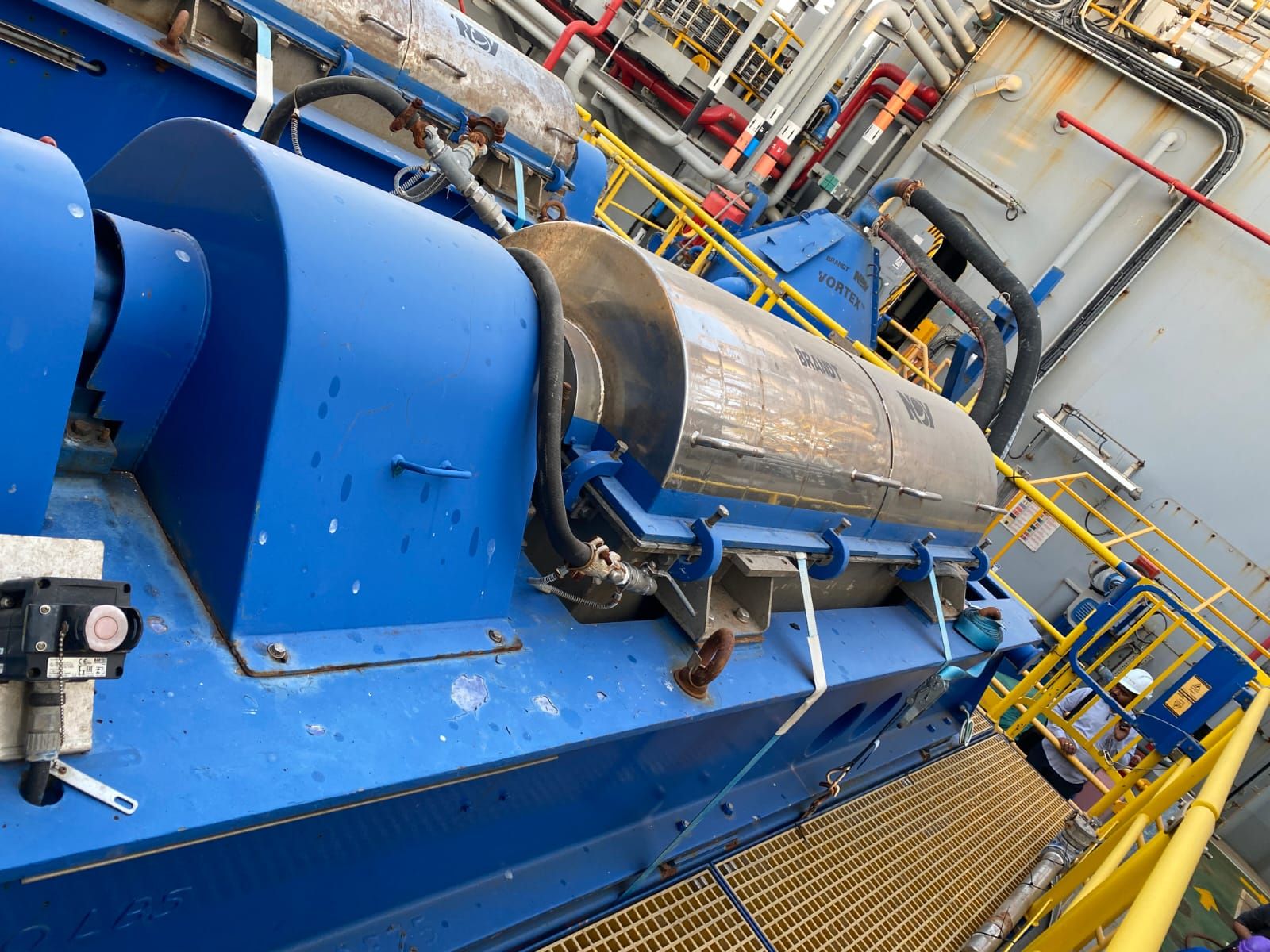

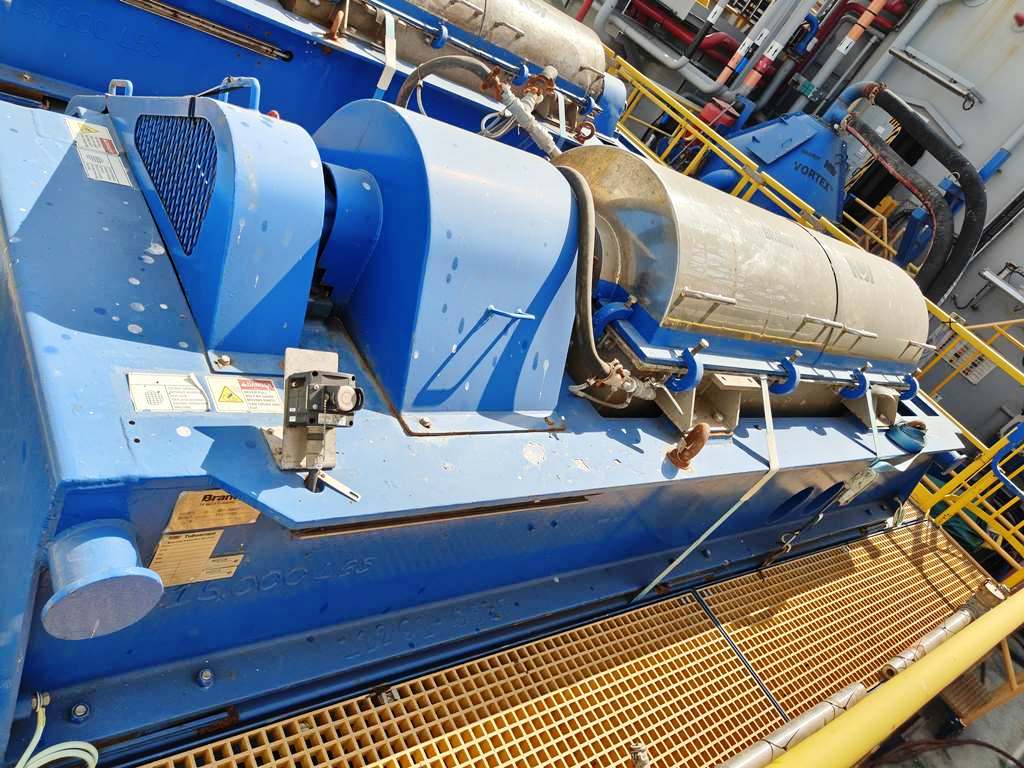

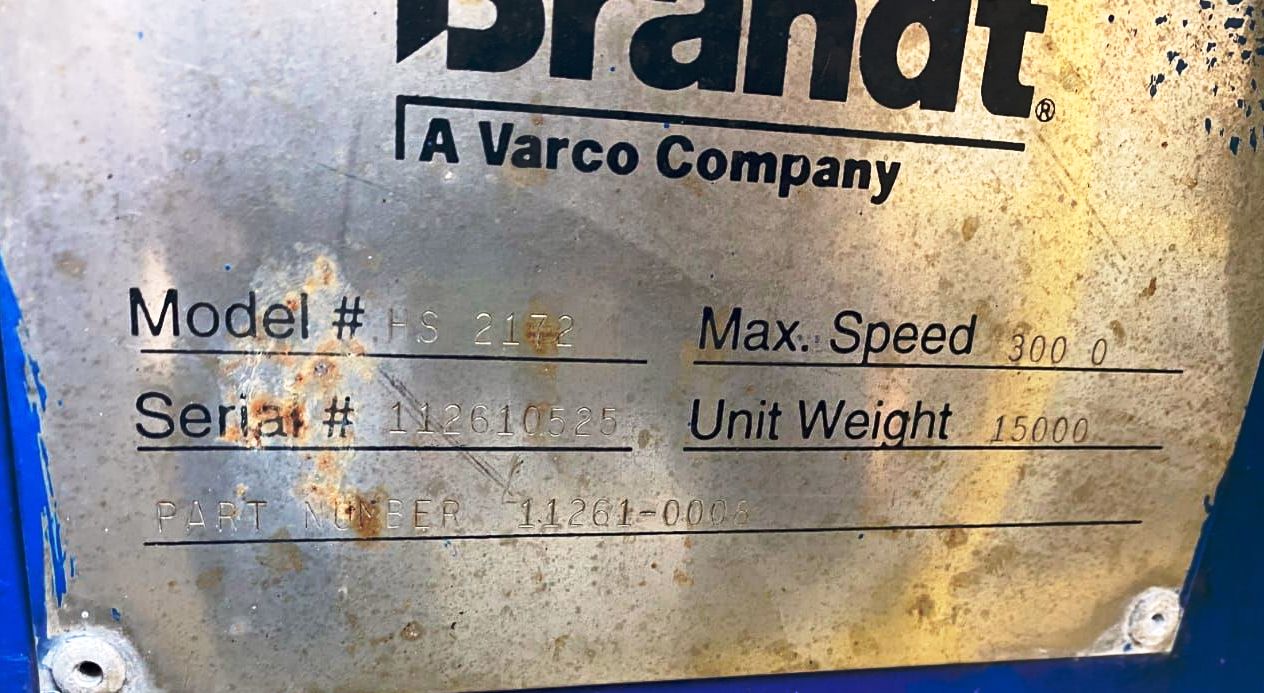

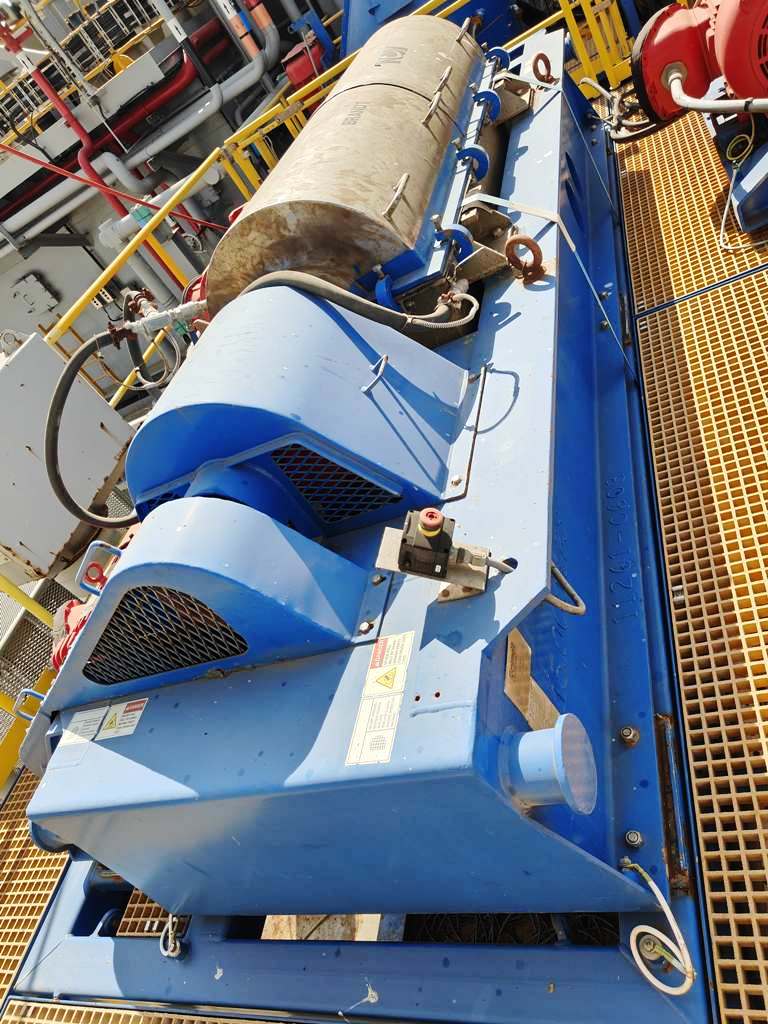

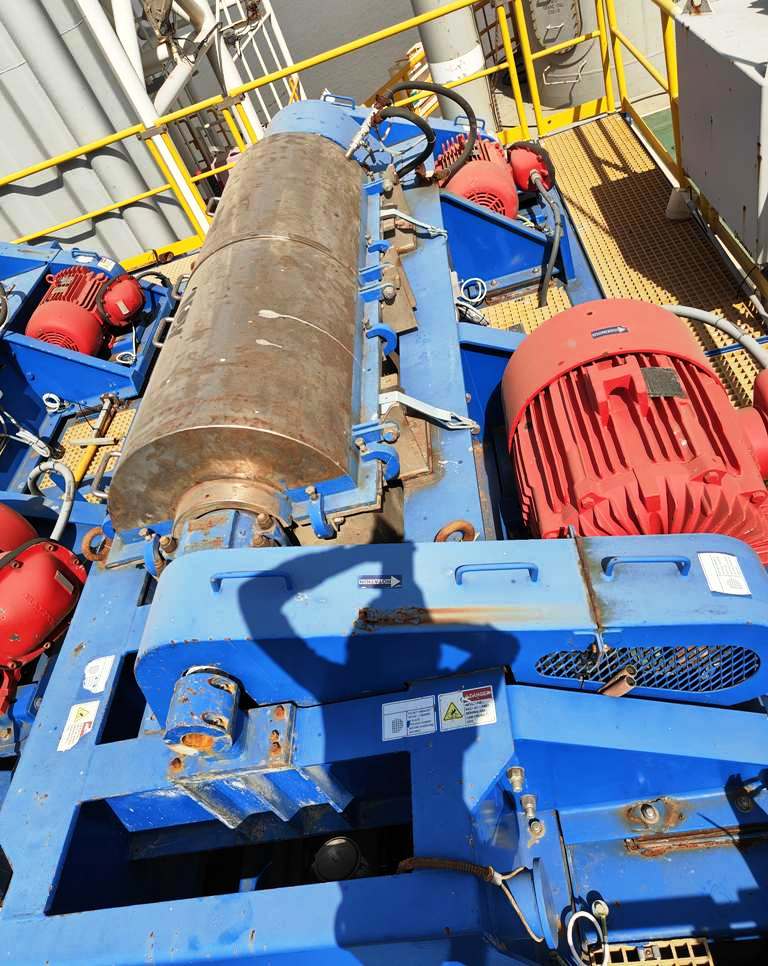

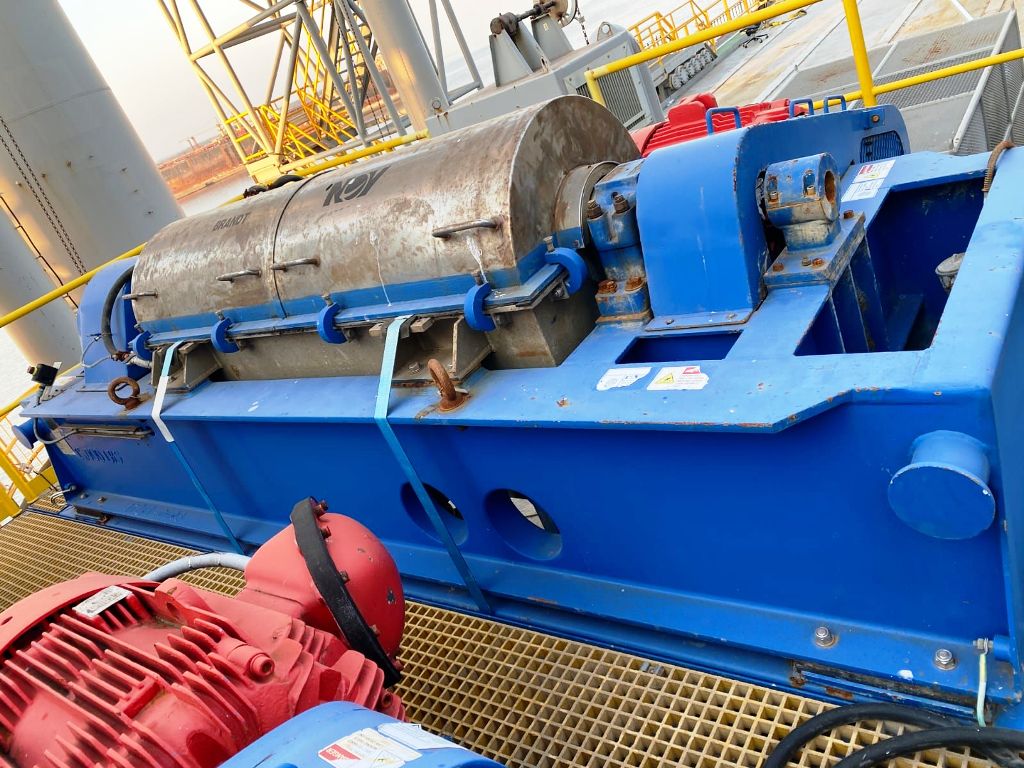

The (2) NOV/Brandt HS-2172 XP oilfield decanter centrifuges, 316SS, are engineered for high-performance separation in demanding oilfield applications. With a maximum bowl speed of 3000 RPM and a centrifugal force of 2750 x G, these centrifuges are capable of handling a maximum throughput of 500 gallons per minute (GPM). The design features 360-degree cake ports equipped with wear liners, ensuring durability and longevity even under rigorous operating conditions. The adjustable liquid ports allow for fine-tuning of the separation process, optimizing performance based on specific operational requirements. Additionally, the 6.25-inch single lead STC-tiled axial/radial conveyor enhances the efficiency of solids removal, while the carbide-lined feed nozzles contribute to reduced wear and maintenance costs over time.

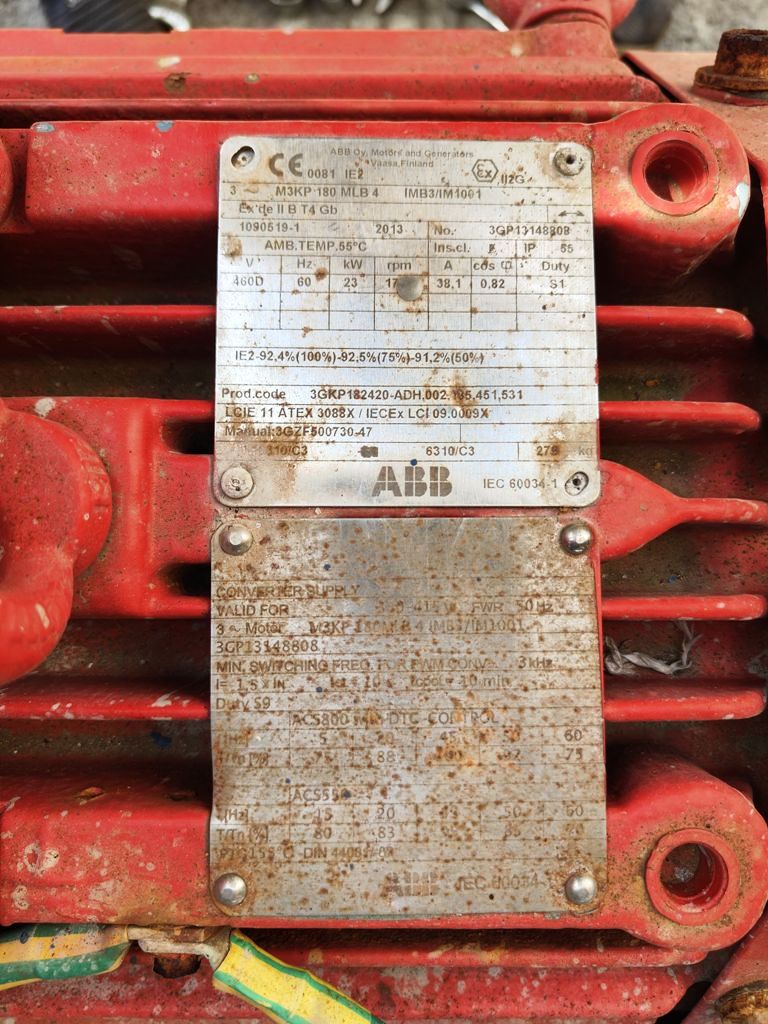

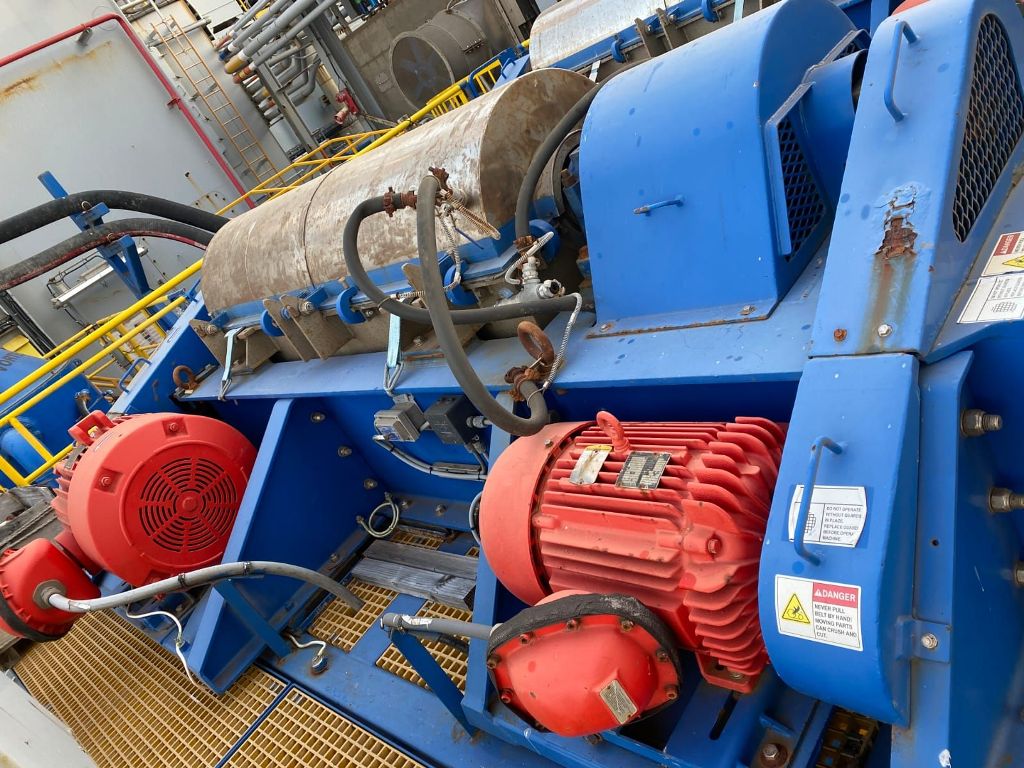

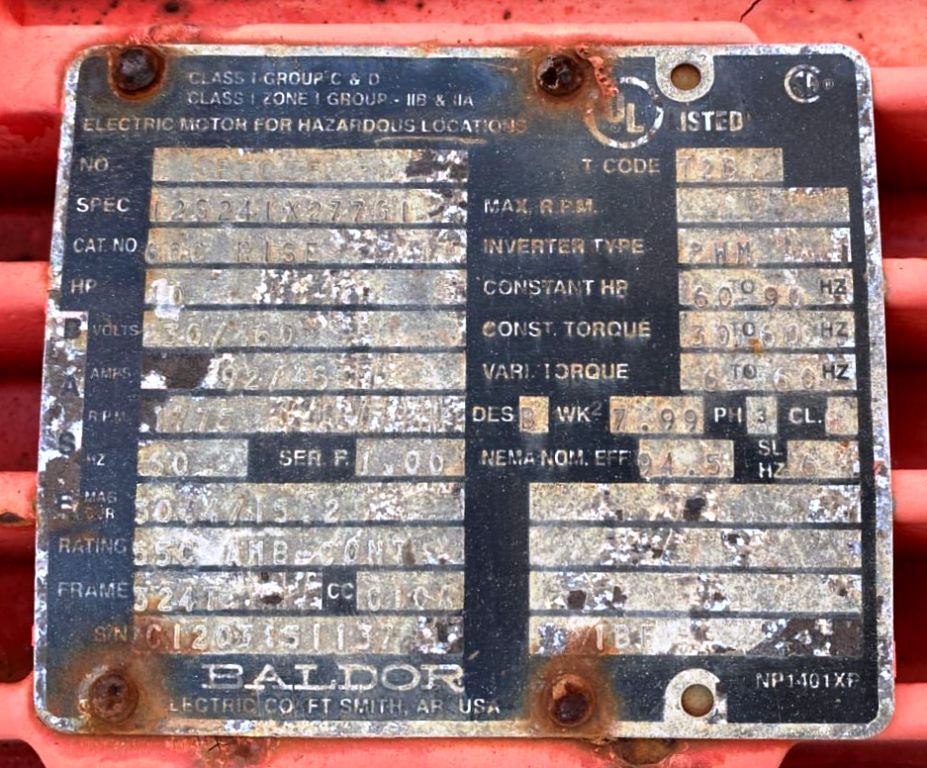

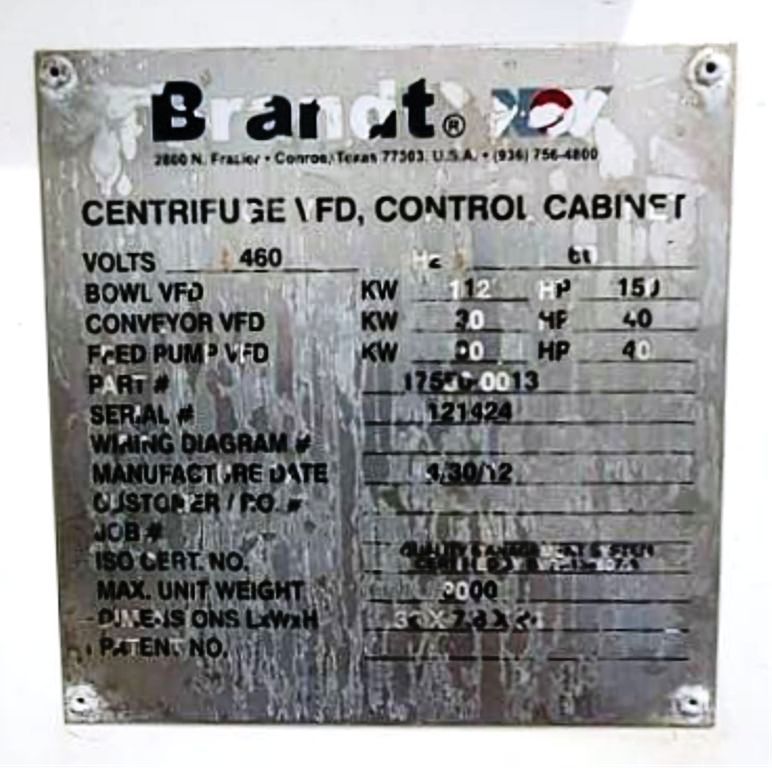

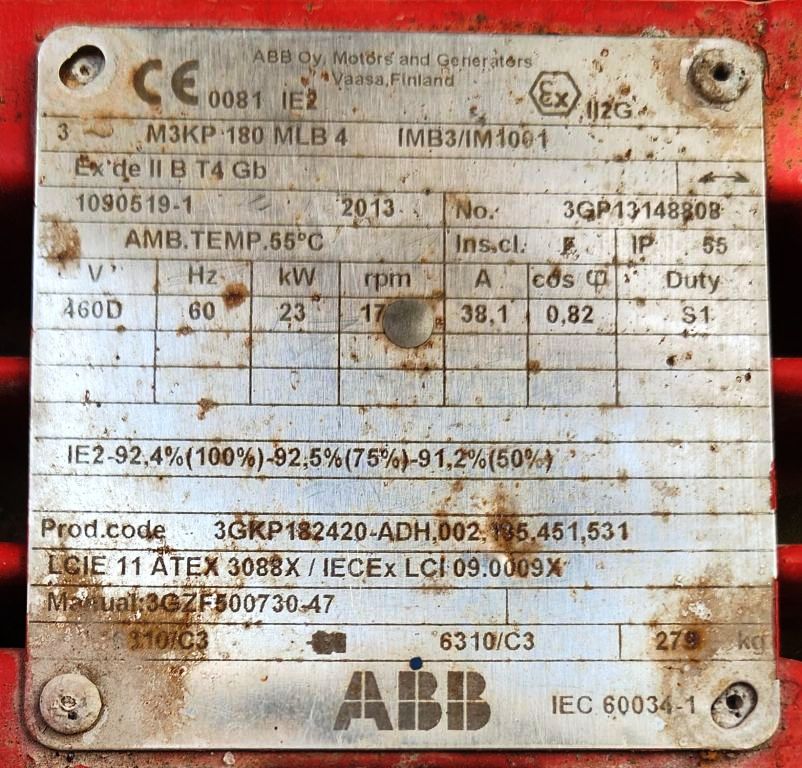

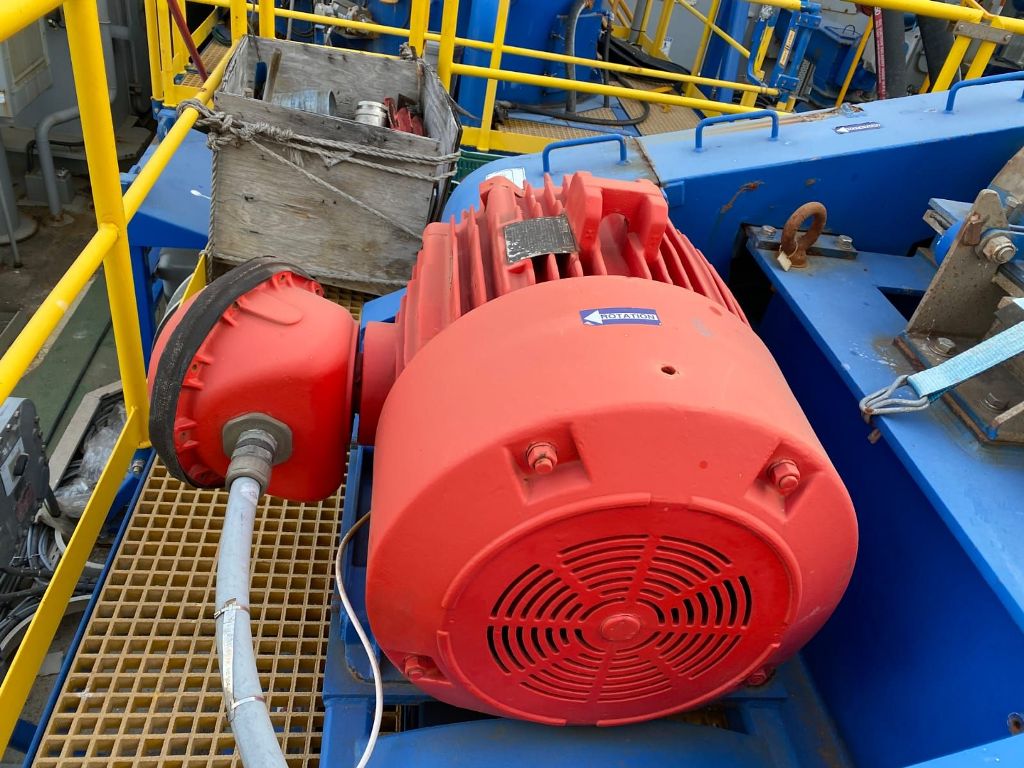

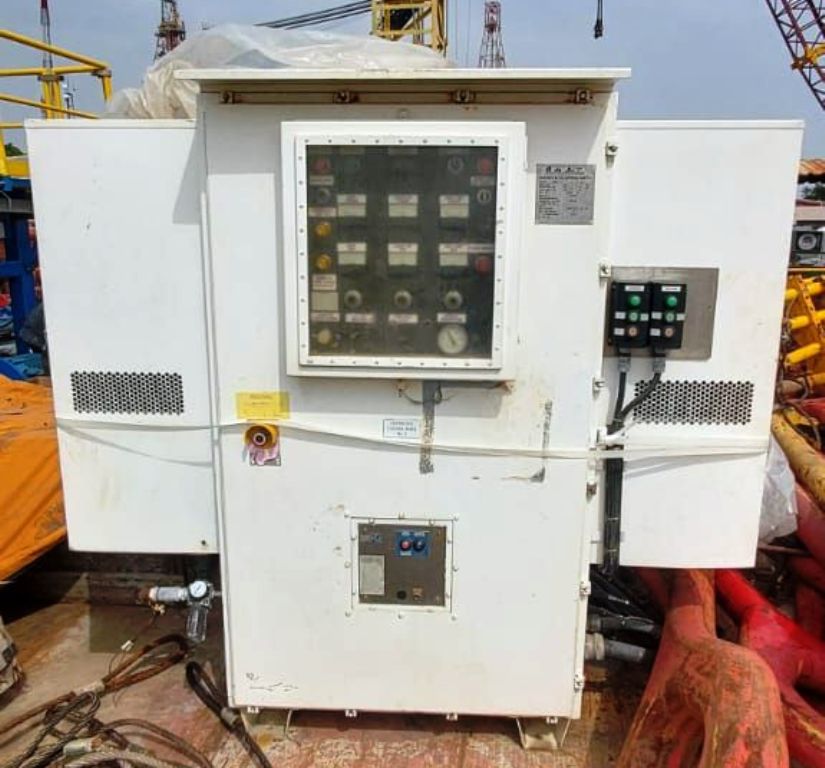

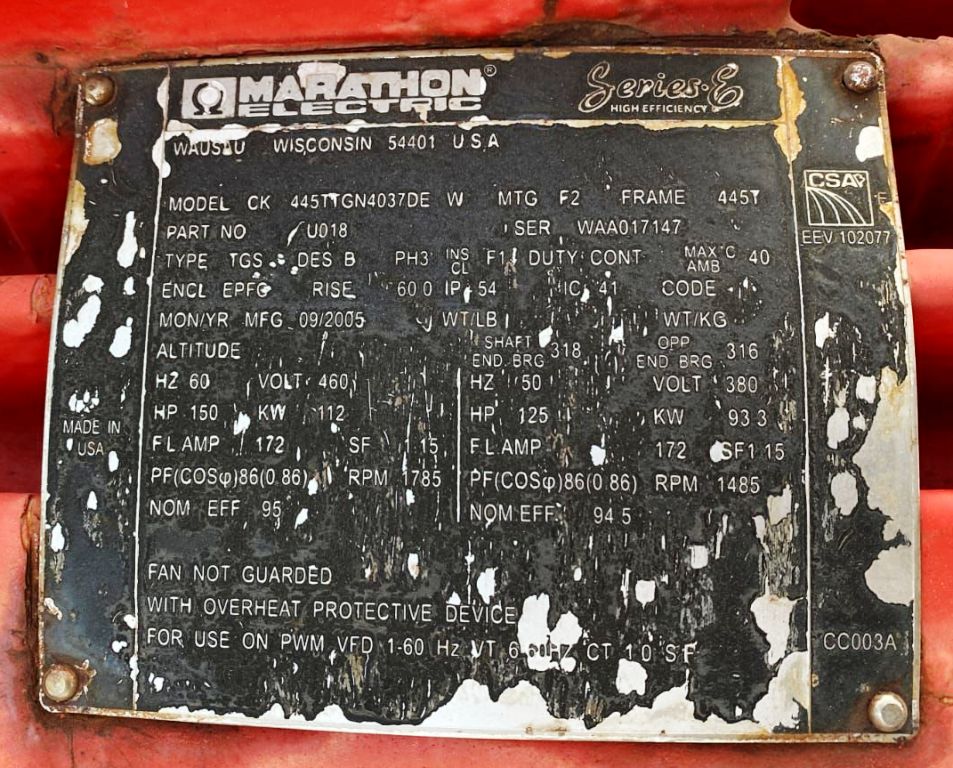

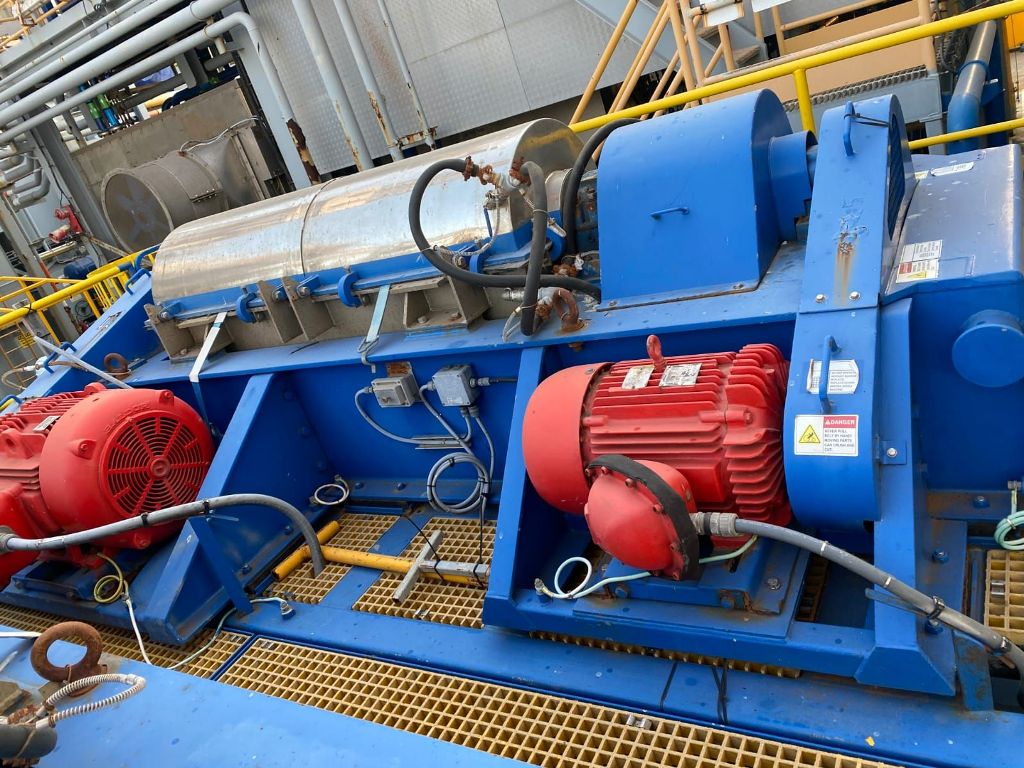

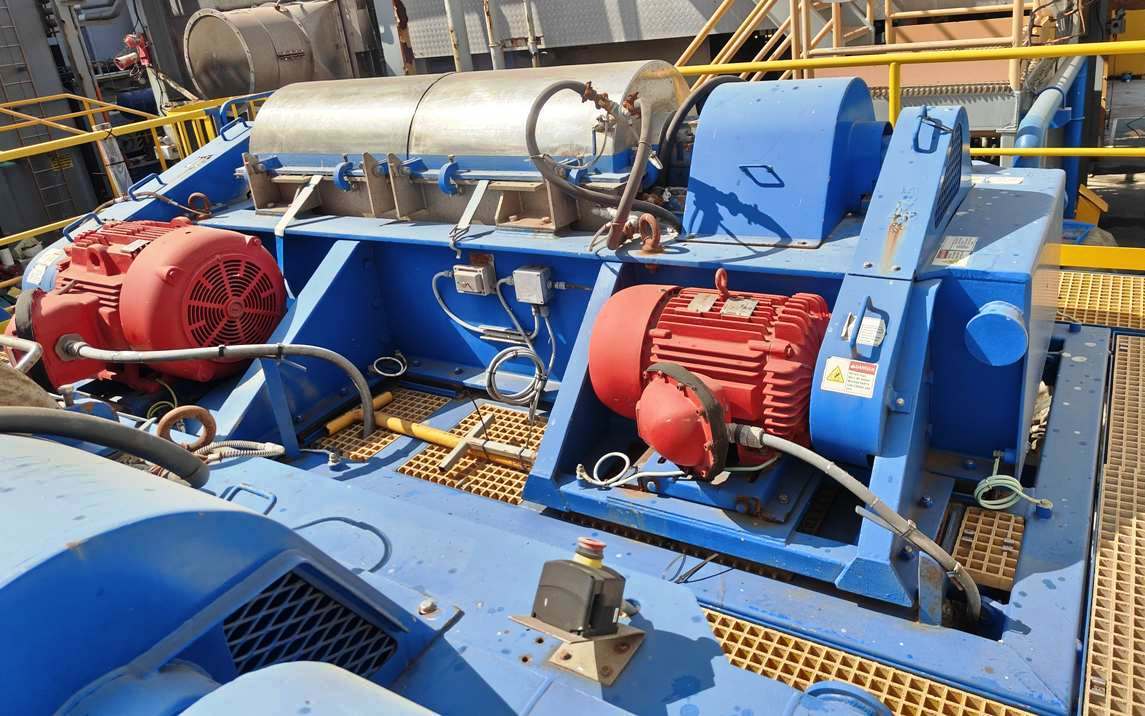

Powering these centrifuges is a robust 150 HP XP motor, operating at 460 volts, 3-phase, 60 Hz, and 1750 RPM, complemented by a 40 HP backdrive for enhanced operational flexibility. The system is equipped with an 8 kNm 48:1 planetary gearbox featuring an overload clutch, which provides reliable torque transmission and protection against unexpected load surges. Safety and operational integrity are prioritized with the inclusion of a vibration switch and isolators, ensuring stable performance during operation. The entire setup is unitized on a stand and includes an XP control panel for streamlined operation. This 2019 vintage system, which also encompasses an EB-36 dryer, two HS-2172 centrifuges, variable frequency drives (VFDs), pumps, tanks, and various controls and accessories, is in very good condition and ready for deployment in oilfield operations in India.
Key Features:
High-Speed Performance, Durable Construction, Efficient Solids Removal, Robust Power System, Safety Features
