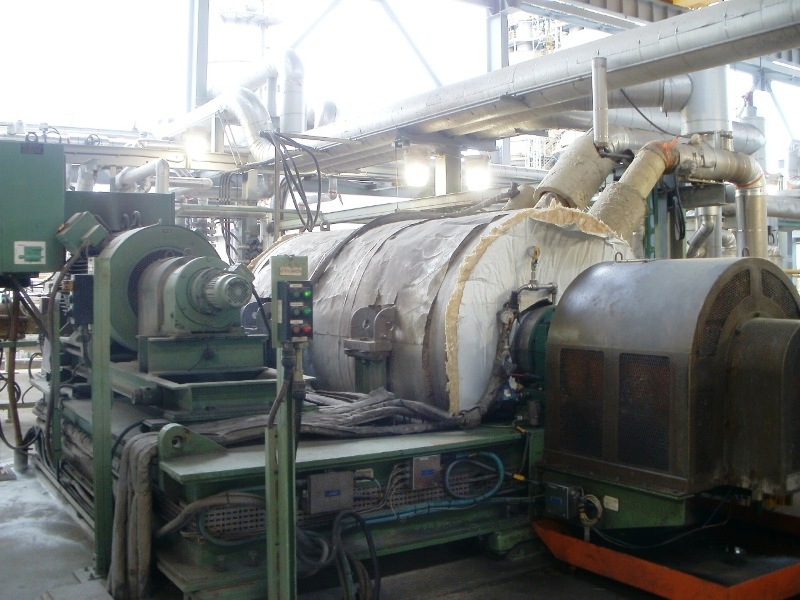

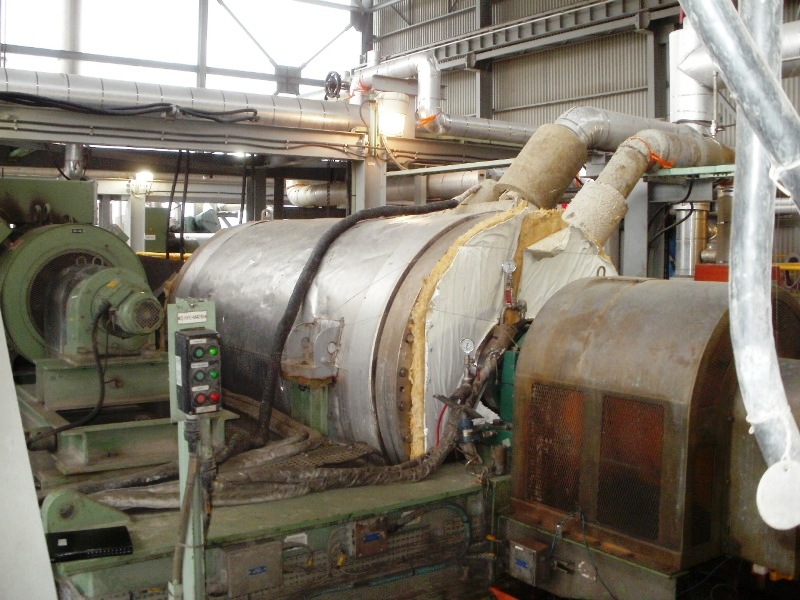

(3) Broadbent 47 x 83 pressure-tight decanter centrifuges, 304L SS.

Max bowl speed 1000 RPM, 333 x G, 1200 x 2100mm bowl ID Rated @ 40,000 kg/hr dry solids (176 GPM), 3.7 kg/cm2 g operating pressure, 5.5 kg/cm2 g wash water pressure, 149 C temp. 200mm double lead bare conveyor, 400 KW motor 4160/3/50 35:1 cyclo gearbox, guards and control panel. 2001 vintage. Prior use: Terephthalic acid crystals. Designed for 500,000 TPY PTA plant. Excellent condition.

The (3) Broadbent 47 x 83 pressure-tight decanter centrifuges, 304L SS. are engineered to deliver high-efficiency separation of solids from liquids, making them ideal for various industrial applications, particularly in the chemical and petrochemical sectors. With a maximum bowl speed of 1000 RPM and a centrifugal force of 333 x G, these centrifuges are capable of handling substantial volumes, rated at 40,000 kg/hr dry solids or 176 GPM. The robust design features a 1200 x 2100 mm bowl diameter, ensuring optimal performance in demanding environments. The units are equipped with a 200 mm double lead bare conveyor that enhances the separation process, while the powerful 400 KW motor, coupled with a 35:1 cyclo gearbox, ensures reliable operation under varying load conditions. The operating pressure of 3.7 kg/cm² g and wash water pressure of 5.5 kg/cm² g further contribute to the efficiency of the separation process, allowing for effective washing and dewatering of the solids.

These centrifuges have a maximum operating temperature of 149°C, making them suitable for processes that require high thermal resistance. Originally designed for a 500,000 TPY PTA plant, they have been previously utilized for the separation of terephthalic acid crystals, showcasing their capability in handling viscous and challenging materials. The 304L stainless steel construction not only provides excellent corrosion resistance but also ensures durability and longevity, making these units a valuable investment for any industrial operation. The inclusion of guards and a control panel enhances safety and ease of operation, allowing for seamless integration into existing production lines. Given their excellent condition and robust specifications, these centrifuges represent a reliable solution for industries seeking to optimize their solid-liquid separation processes.
