Description:
Max bowl speed 3420 RPM, 3000 x G, rated @ 120 GPM max. Effluent discharged under pressure, 5" single lead hardsurfaced conveyor, 60 HP motor 230/460/3/60/1780 RPM, 25 HP backdrive, guards and XP control panel. Unitized on oilfield skid. Excellent running condition.

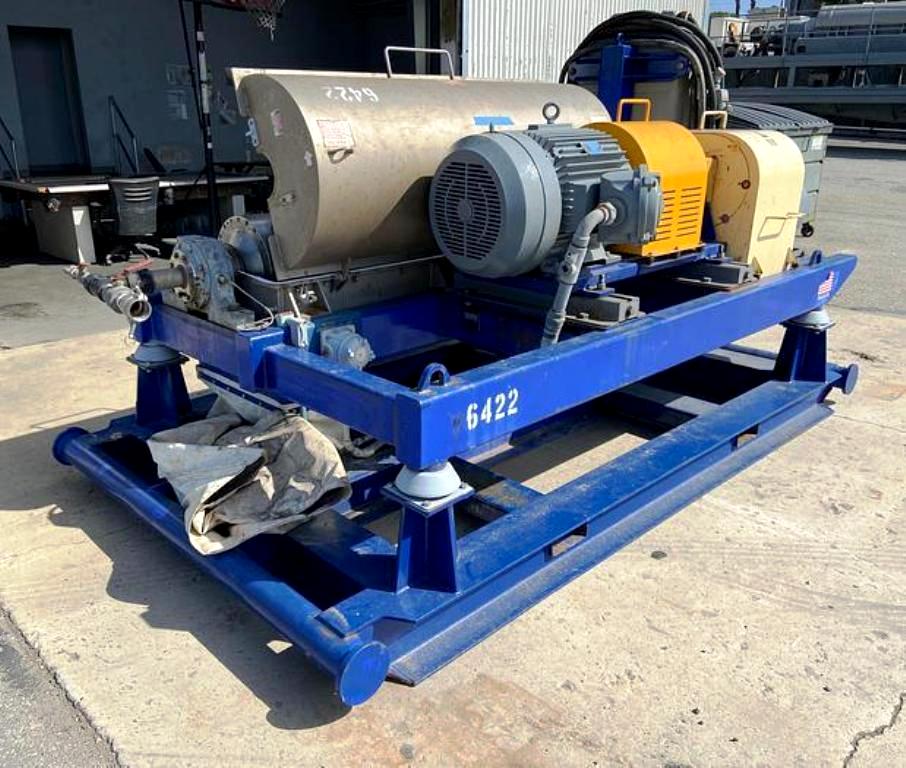

The Centrisys CS 18-3 decanter centrifuge, 316SS. is engineered for high-efficiency separation processes, making it an ideal choice for various industrial applications, including wastewater treatment, oil and gas, and food processing. With a maximum bowl speed of 3420 RPM and the ability to generate 3000 x G, this centrifuge ensures optimal solid-liquid separation, resulting in cleaner effluent and reduced sludge volume. The unit is rated for a maximum throughput of 120 gallons per minute (GPM), allowing for substantial processing capabilities that can meet the demands of large-scale operations. The effluent is discharged under pressure, enhancing the overall efficiency of the separation process and minimizing the need for additional pumping systems downstream.

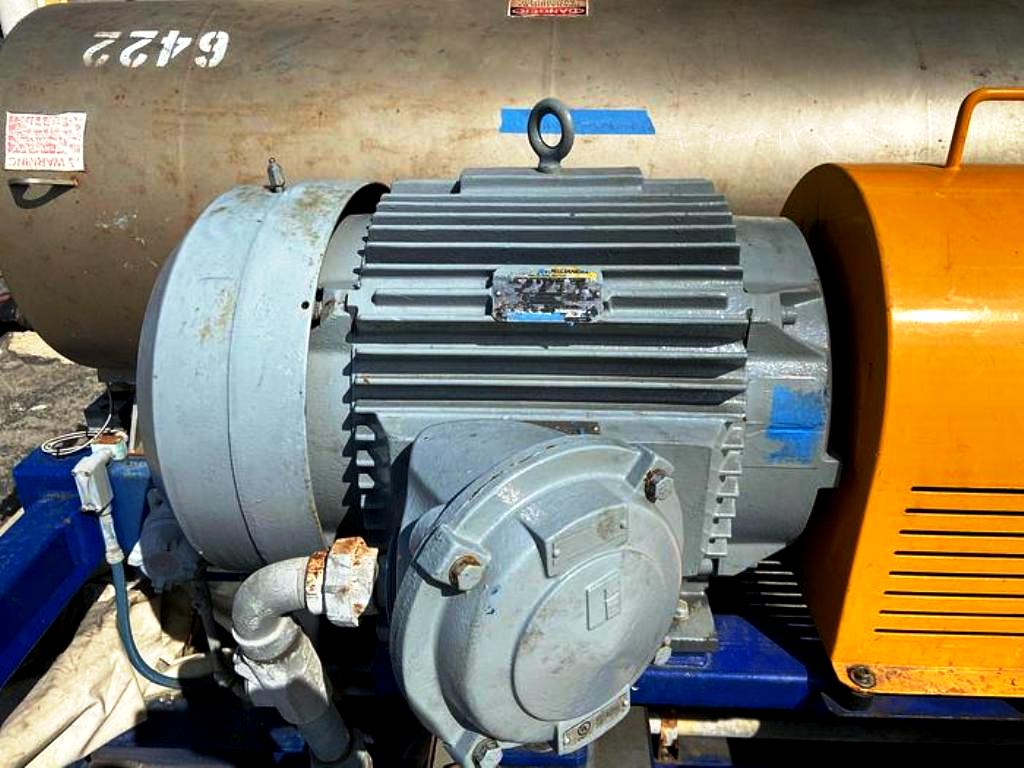

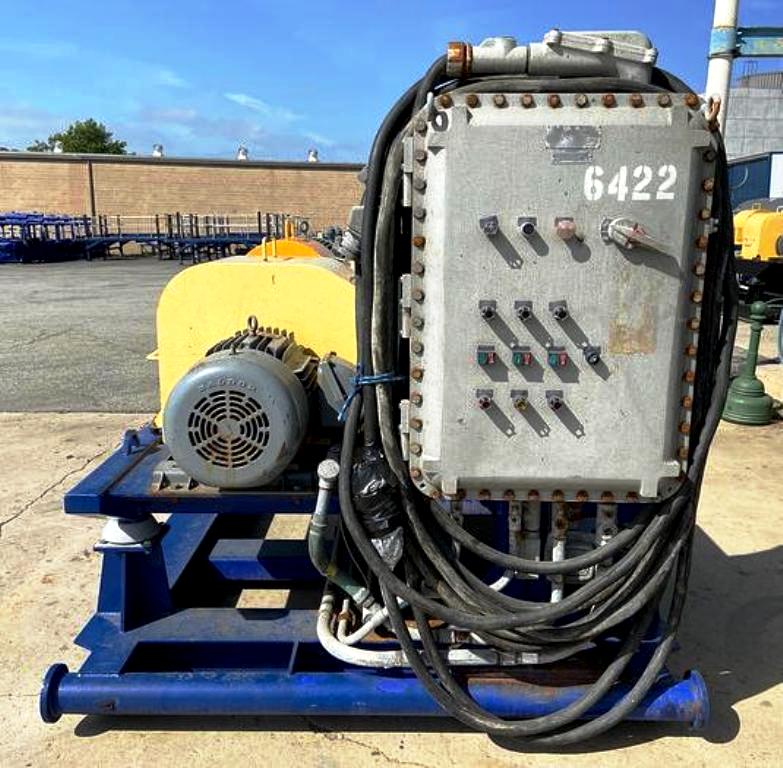

Constructed with a robust 316 stainless steel body, the Centrisys CS 18-3 is designed to withstand harsh industrial environments while providing exceptional corrosion resistance. The 5-inch single lead hardsurfaced conveyor is engineered for durability and longevity, ensuring reliable operation even under continuous use. The centrifuge is powered by a 60 HP motor, which operates at 230/460 volts with a 3-phase, 60 Hz frequency, delivering a consistent performance at 1780 RPM. Additionally, the 25 HP backdrive motor provides enhanced control over the conveyor speed, allowing for precise adjustments during operation. Safety features include guards and an explosion-proof (XP) control panel, ensuring compliance with industry standards and protecting operators during use. The unit is mounted on an oilfield skid, facilitating easy transportation and installation in various settings.
In summary, the Centrisys CS 18-3 decanter centrifuge, 316SS. combines advanced engineering with durable construction to deliver exceptional performance in solid-liquid separation. Its high-speed capabilities, robust design, and safety features make it a reliable choice for industries that require efficient and effective separation solutions. Whether you are looking to enhance your wastewater treatment process or improve your operational efficiency in other applications, this centrifuge stands out as a top-tier option.
Key Features:
High-Speed Performance, Durable Construction, Efficient Solid-Liquid Separation, Robust Power System, Safety Features
