Description:

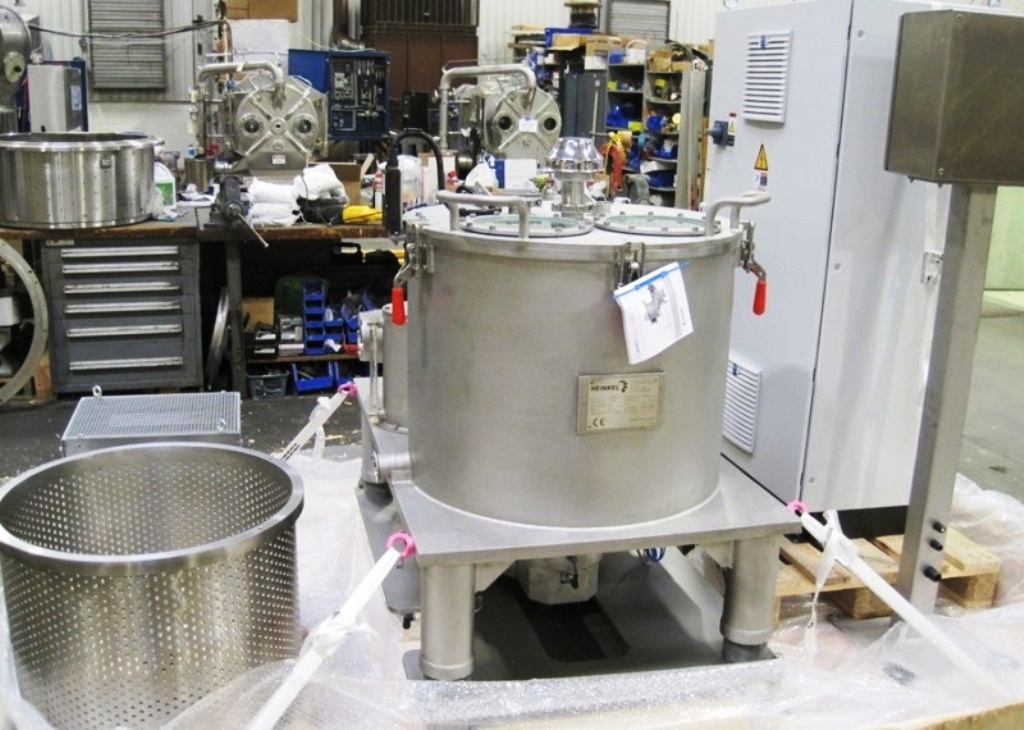

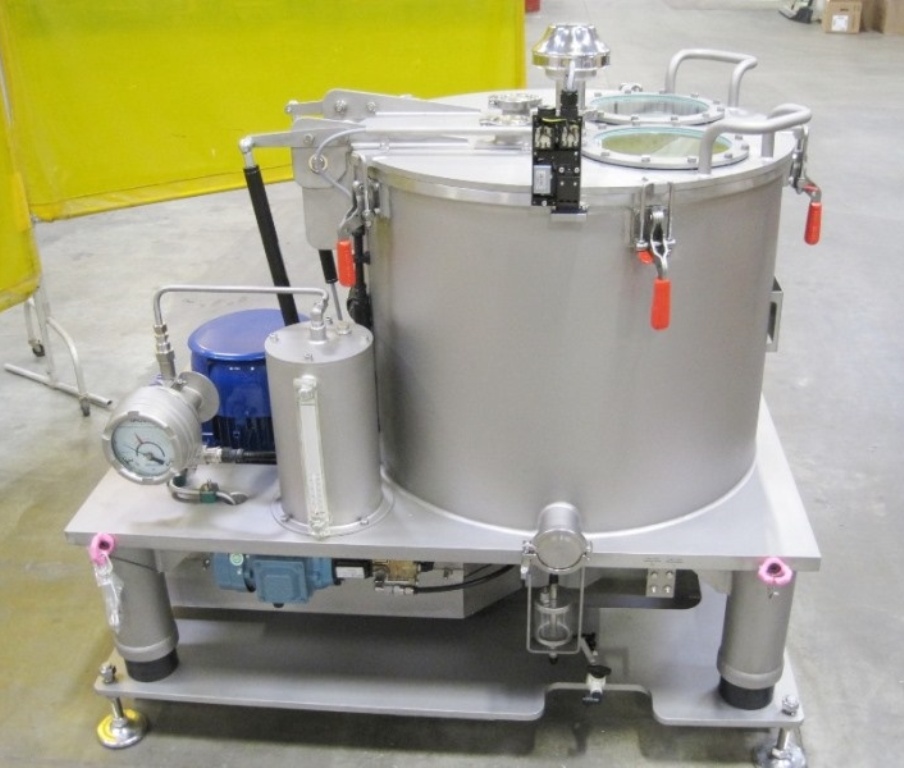

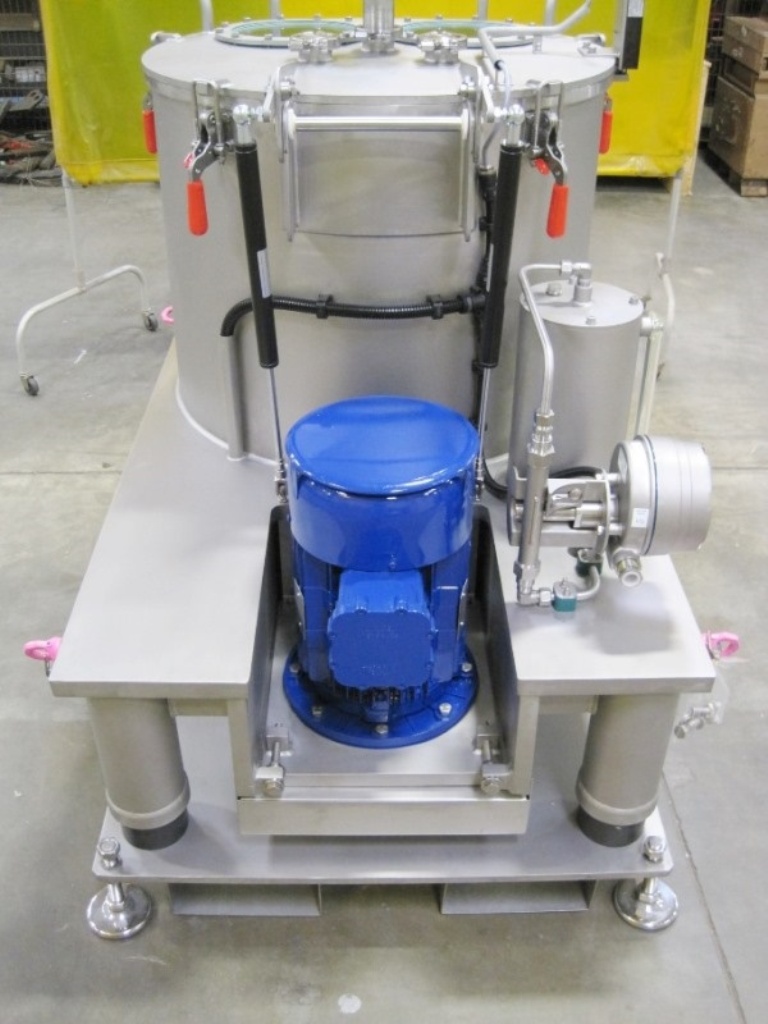

630mm (24.8") basket diameter, rated at 10-60 lbs (27kg) biomass/batch, 97% ethanol removal, temps to -40C, 20-25 minute batch time, cGMP/FDA pharma grade, XP motor with VFD, insulated casing, closed loop mechanical seal system with sight glasses and flow level detection, top lid locking system, pneumatic lid lifting system, vibration switch/isolators, unitized on a skid with HMI control panel. Excellent condition; looks unused.
The Heinkel V630TX cannabis ethanol extraction centrifuge, 316SS, is engineered to deliver exceptional performance in the extraction of cannabinoids from biomass. With a generous basket diameter of 630mm (24.8 inches) and a capacity to handle 10-60 lbs (27kg) of biomass per batch, this centrifuge is designed for efficiency and reliability. The unit achieves an impressive 97% ethanol removal rate, making it an ideal choice for operations seeking to maximize yield while minimizing solvent usage. Operating at temperatures as low as -40°C, the Heinkel V630TX ensures that the extraction process remains effective even under challenging conditions, thereby preserving the integrity of the extracted compounds. The batch processing time of just 20-25 minutes allows for rapid turnaround, making it suitable for both small-scale and large-scale production environments.
Built to meet the stringent requirements of cGMP and FDA standards, the Heinkel V630TX is constructed from high-quality 316 stainless steel, ensuring durability and resistance to corrosion. The inclusion of an XP motor with variable frequency drive (VFD) allows for precise control over the centrifuge's speed and performance, enhancing operational flexibility. The insulated casing contributes to energy efficiency while minimizing heat loss during extraction. Furthermore, the closed-loop mechanical seal system, equipped with sight glasses and flow level detection, provides operators with real-time monitoring capabilities, ensuring optimal performance and safety during operation. The top lid locking system and pneumatic lid lifting system enhance user convenience, while the vibration switch and isolators help maintain stability during operation. The unitized design on a skid, complete with an HMI control panel, simplifies installation and integration into existing workflows, making the Heinkel V630TX a valuable asset for any cannabis extraction facility.
Key Features:
High Extraction Efficiency, Robust Stainless Steel Construction, Advanced Control Systems, Rapid Batch Processing, Safety and Monitoring Features
