Description:

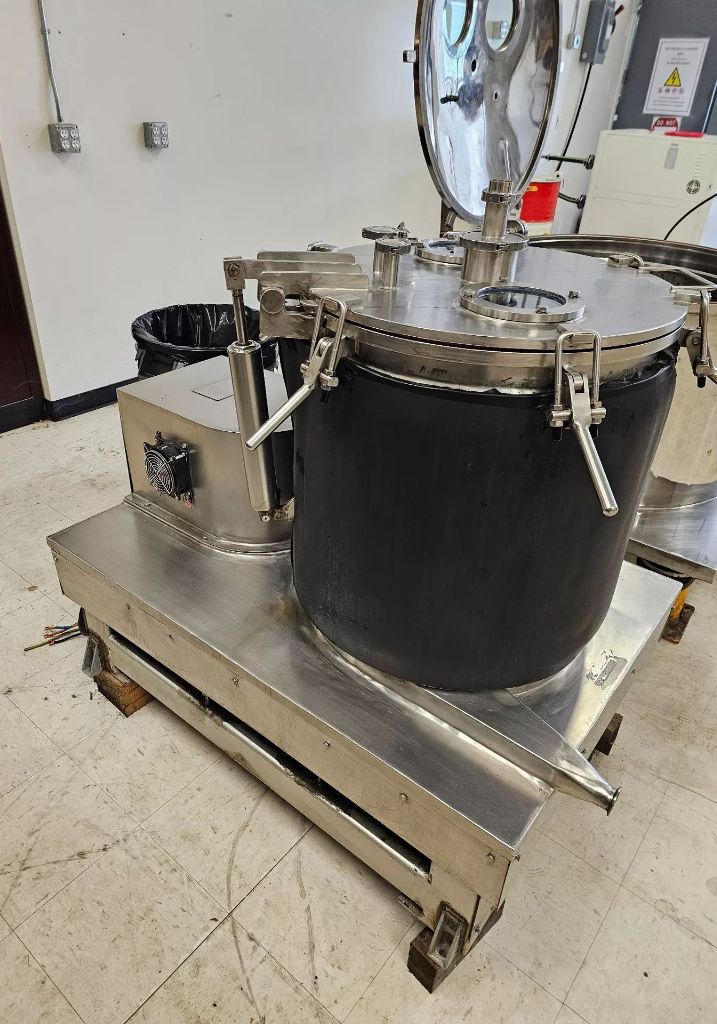

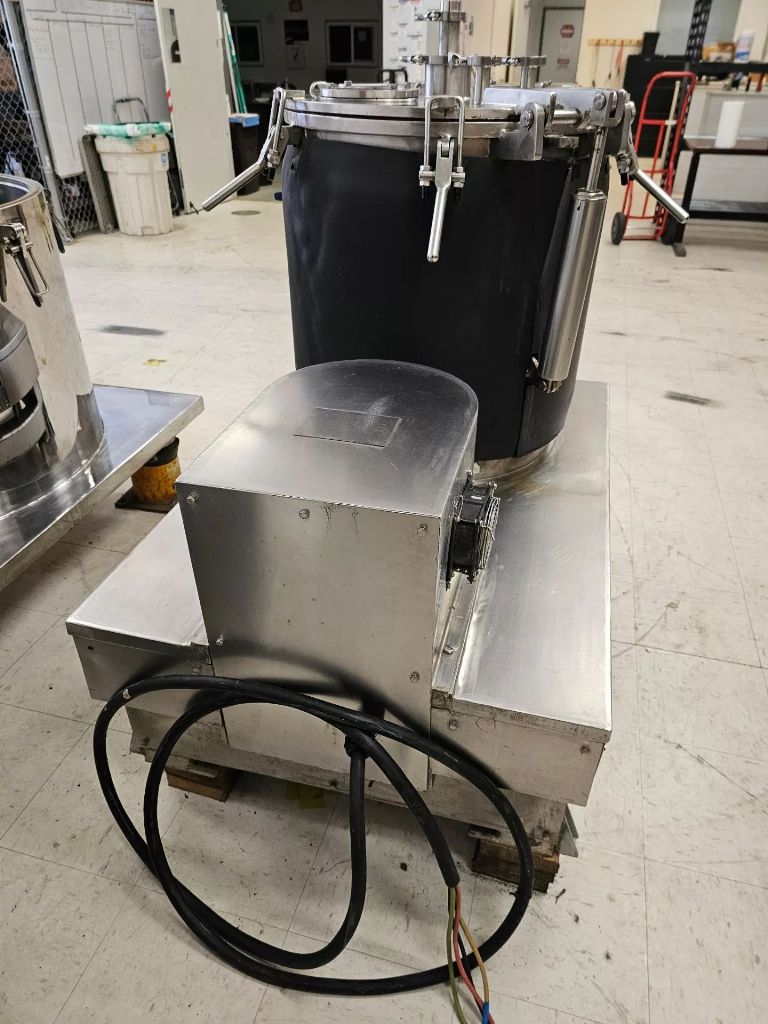

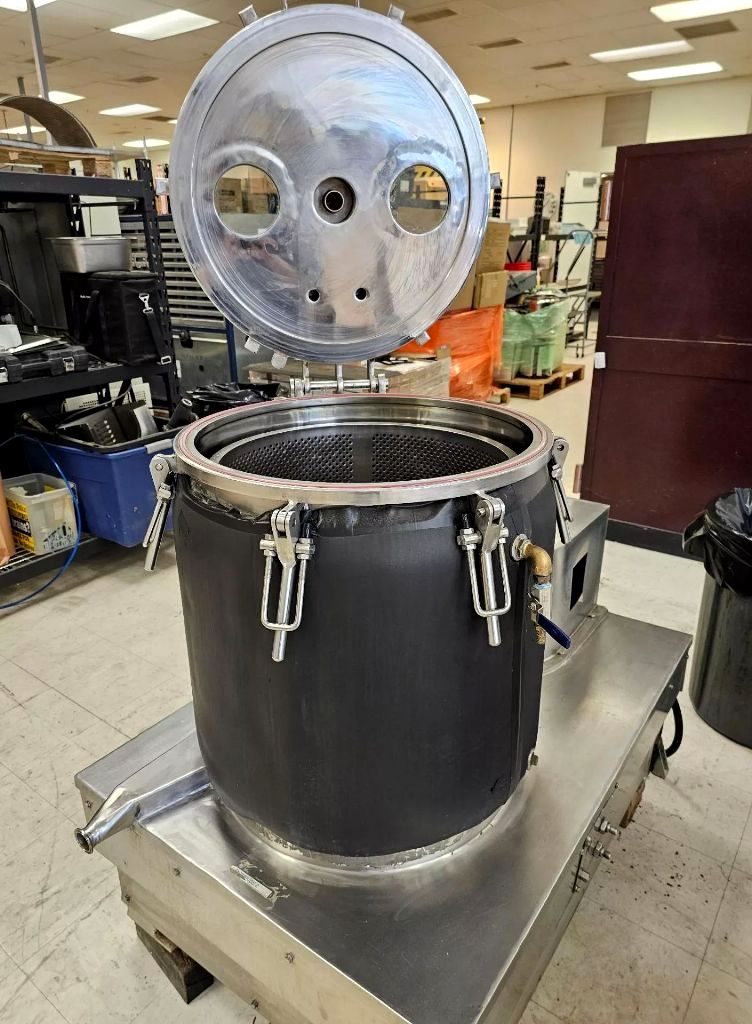

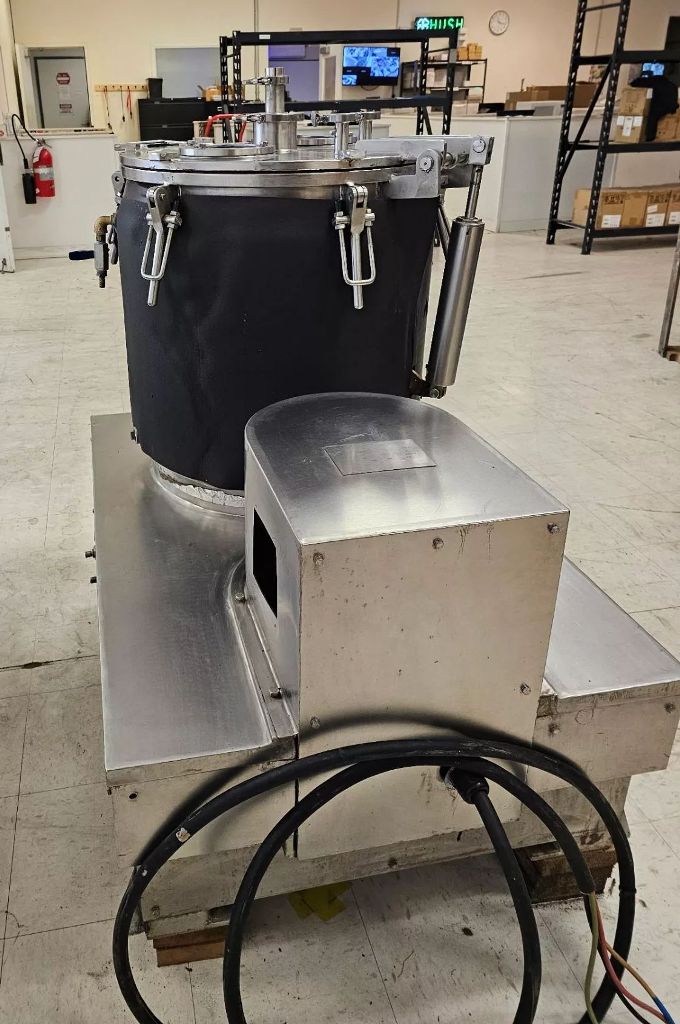

Max bowl speed 1600 RPM, rated @ 30 LB biomass per batch, low temp -80C max, sanitary design, vacuum jacketed insulation layer, 3.7 KW XP motor 460/3/60, reinforced sight glass, tri-clamp fitting for feed and drain ports, Siemens control panel with VFD, mounted on a portable skid. Never used!
The Nanjing Kingreat BB-30 ethanol extractor, 316L SS. is engineered for high efficiency and reliability in the extraction of essential oils and other valuable compounds from biomass. With a maximum bowl speed of 1600 RPM, this extractor is capable of processing up to 30 pounds of biomass per batch, making it an ideal choice for medium to large-scale operations. The low-temperature capability, reaching down to -80°C, allows for the preservation of delicate compounds, ensuring that the quality of the extracted material is maintained. The sanitary design of the unit is crucial for industries that require strict adherence to hygiene standards, making it suitable for food, pharmaceutical, and cosmetic applications. The vacuum jacketed insulation layer not only enhances thermal efficiency but also contributes to the safety and stability of the extraction process, minimizing the risk of temperature fluctuations that could affect the final product.
The Nanjing Kingreat BB-30 is equipped with a robust 3.7 KW explosion-proof motor, operating at 460V, 3-phase, and 60 Hz, ensuring powerful performance while adhering to safety regulations. The reinforced sight glass allows operators to monitor the extraction process without compromising safety, providing a clear view of the material inside. Additionally, the tri-clamp fittings for both feed and drain ports facilitate quick and easy connections, streamlining the workflow and reducing downtime during batch changes. The Siemens control panel, featuring a Variable Frequency Drive (VFD), offers precise control over the motor speed and extraction parameters, enabling operators to customize the process according to specific requirements. Mounted on a portable skid, the Nanjing Kingreat BB-30 ethanol extractor is designed for flexibility, allowing it to be easily relocated within a facility or transported to different sites as needed.
Key Features:
High-Speed Performance, Durable Construction, Easy Maintenance, Advanced Control System, Portable Design
