Alfa-Laval LAPX 404 SGP-31G CLARA 20 LF clarifier, 316SS.

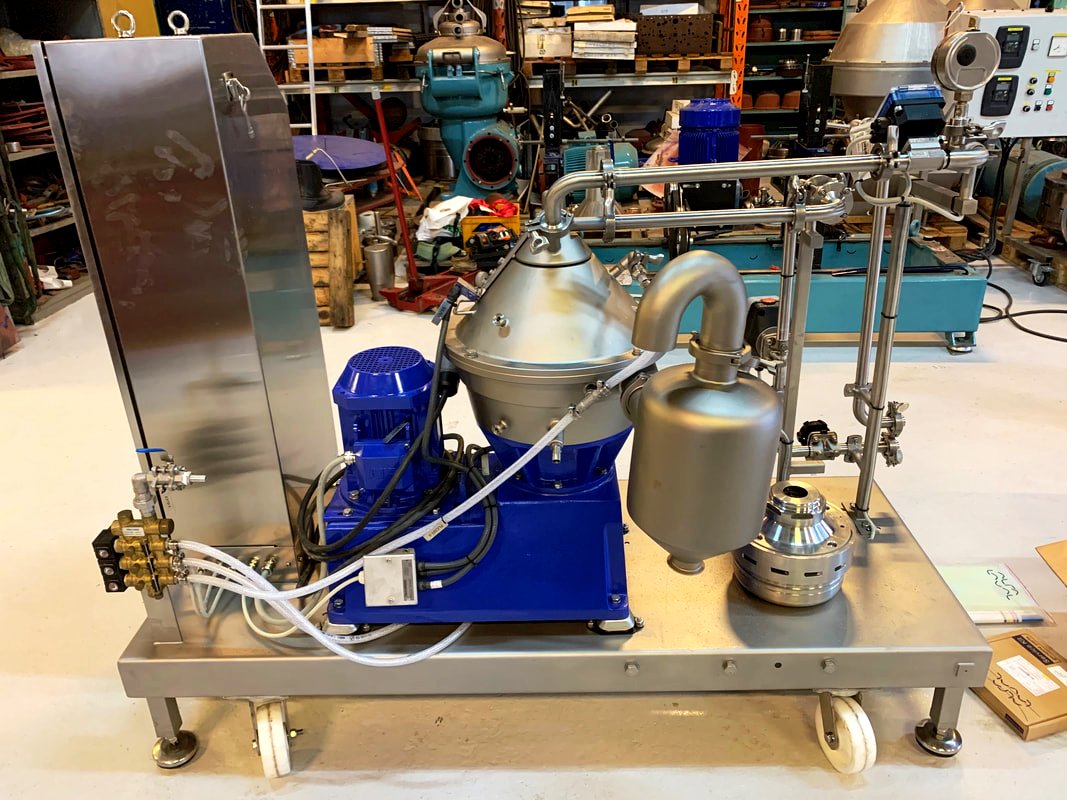

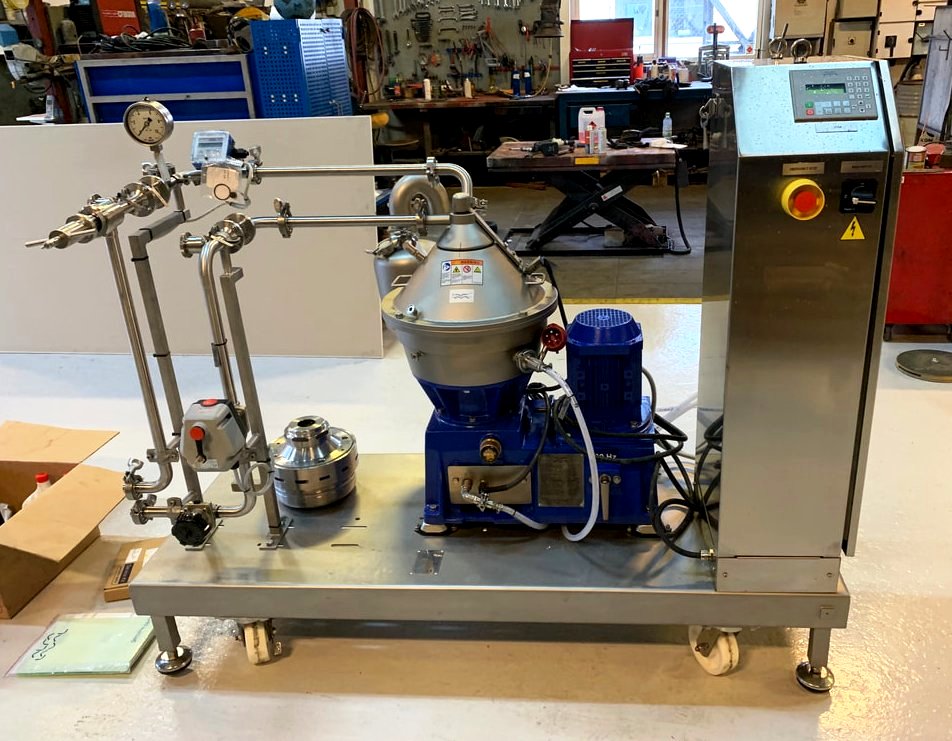

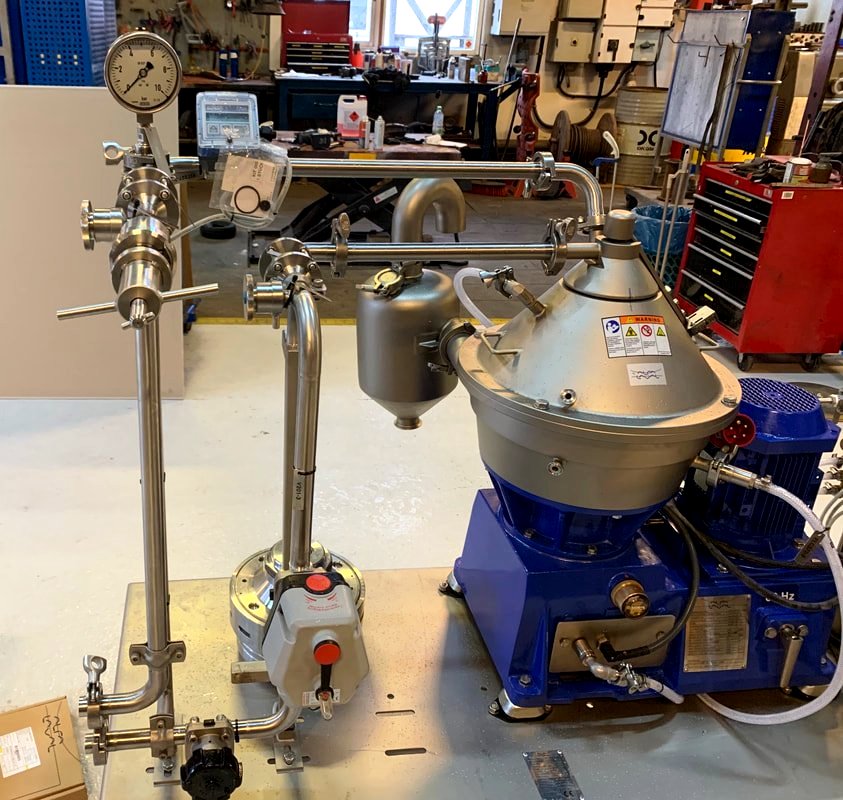

Max bowl speed 9600 RPM, 11,000 x G, rated @ 1000 LPH, max solids capacity 33 LPH, 0-100C temp range. Liquid discharged under pressure, low shear disc inlet design, 3.7 KW motor 460/3/60/3600 RPM, sludge tank, piping, tools, manuals and EPC-60 control panel, unitized on a portable cart. 2014 vintage. Excellent condition. FCA Europe.

The Alfa-Laval LAPX 404 SGP-31G CLARA 20 LF clarifier, 316SS. is engineered for high-performance separation processes, making it an essential asset for industries requiring efficient liquid-solid separation. With a maximum bowl speed of 9600 RPM and a force of 11,000 x G, this clarifier is capable of handling a rated throughput of 1000 liters per hour. Its impressive solids capacity of 33 liters per hour ensures that even the most demanding applications can be managed effectively. The unit operates within a temperature range of 0-100°C, allowing for versatility in various operational environments. The liquid is discharged under pressure, which enhances the efficiency of the separation process and minimizes the risk of contamination, a critical factor in industries such as food and beverage, pharmaceuticals, and chemical processing.

The design of the Alfa-Laval LAPX 404 SGP-31G CLARA 20 LF clarifier, 316SS. incorporates a low shear disc inlet, which is particularly beneficial for sensitive materials that require gentle handling to maintain their integrity. This feature, combined with a robust 3.7 KW motor operating at 460 volts, 3-phase, and 60 Hz, ensures that the clarifier delivers consistent performance while minimizing energy consumption. The unit is equipped with a sludge tank, piping, tools, and manuals, providing a comprehensive solution for immediate deployment. Additionally, the inclusion of the EPC-60 control panel allows for precise monitoring and control of the separation process, enhancing operational efficiency. Mounted on a portable cart, this clarifier is not only easy to transport but also facilitates quick setup and relocation within production facilities. With its 2014 vintage and excellent condition, this unit represents a reliable investment for businesses looking to optimize their separation processes.
