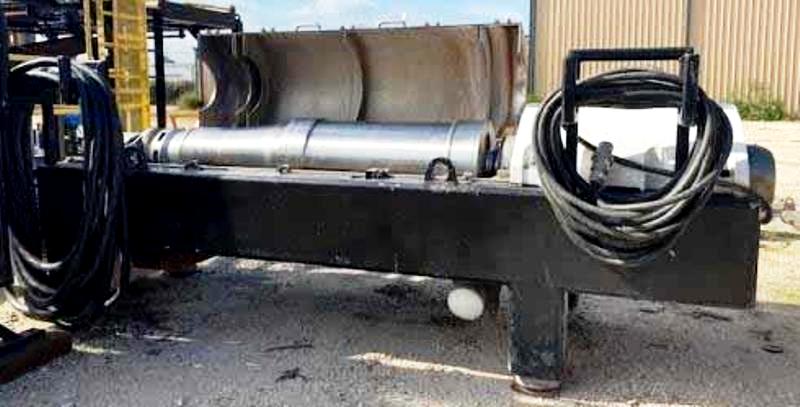

Alfa-Laval LYNX 40 Drilling Mud decanter, 316SS.

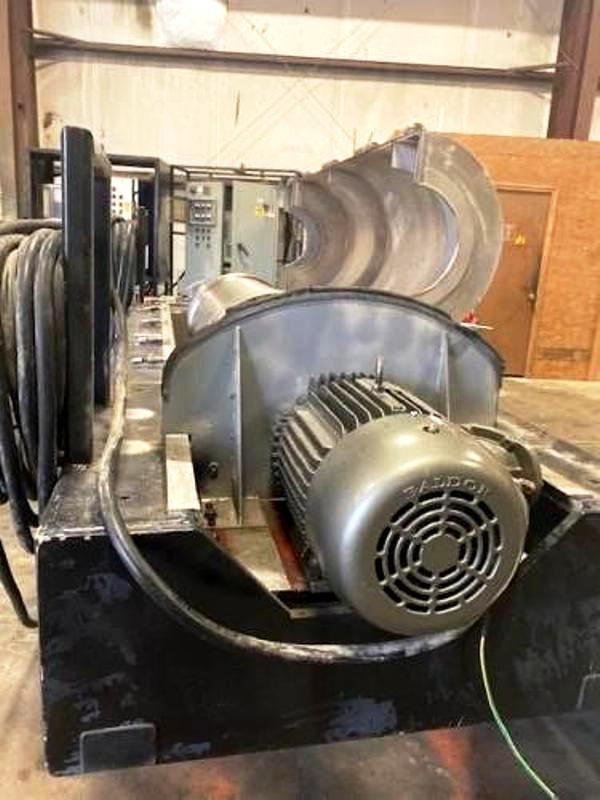

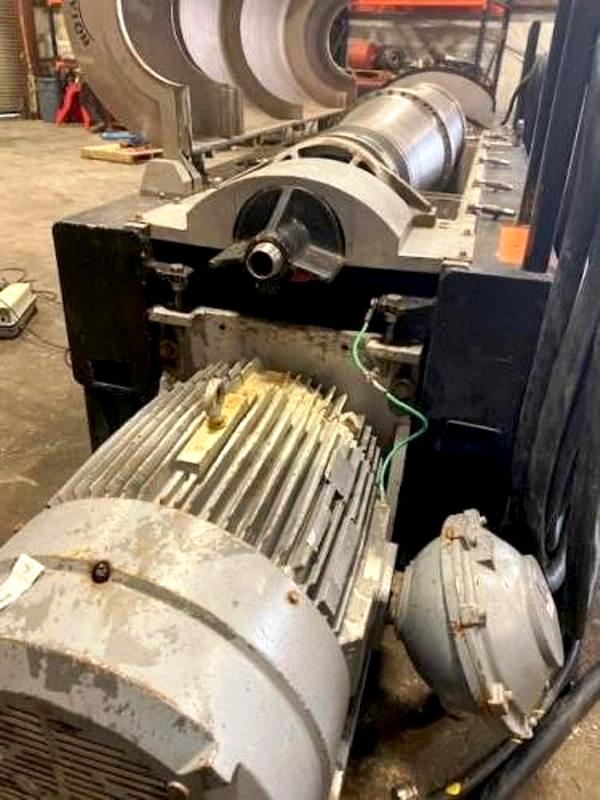

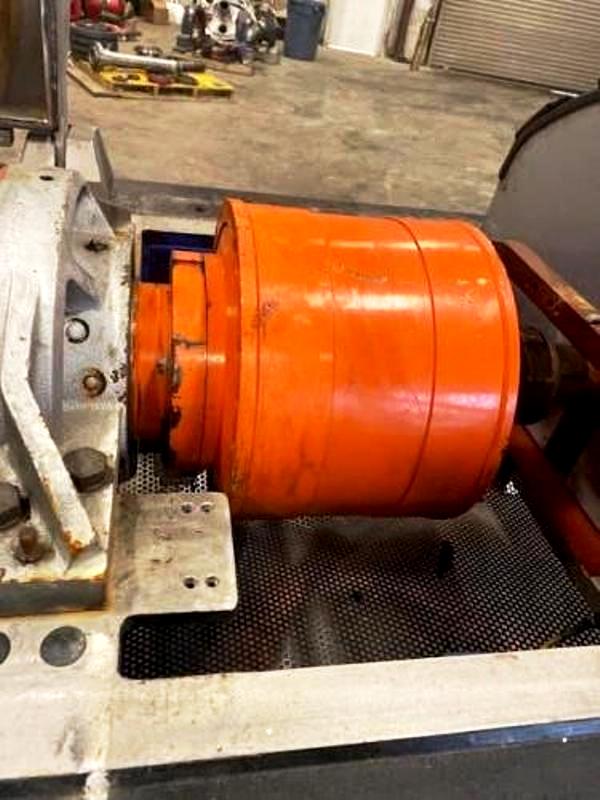

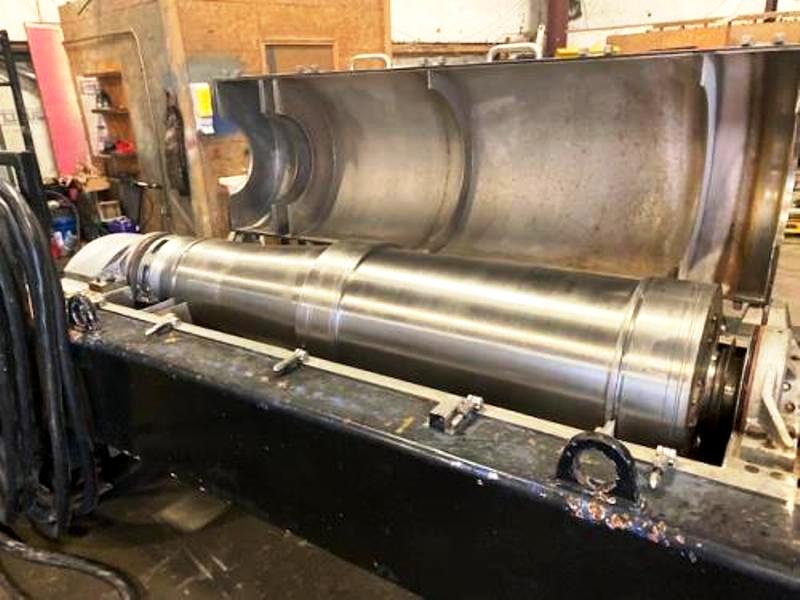

Max bowl speed 3650 RPM, 3574 x G, bowl ID: 480 x 2035mm = 19 x 80", 8 degree beach, 360 degree cake ports with wear protection, adjustable liquid dams, 6" single lead STC-tiled conveyor, 55 KW XP motor 460/3/60/1750/RPM, 15 KW XP backdrive, 6 kNm DD 52:1 gearbox, guards, feed tube and chutes, unitized on a stand with control panel. Very good condition.

The Alfa-Laval LYNX 40 Drilling Mud decanter, 316SS. is engineered for optimal performance in the demanding environment of drilling operations. With a maximum bowl speed of 3650 RPM and a centrifugal force of 3574 x G, this decanter is designed to efficiently separate solids from liquids, ensuring the highest quality of drilling mud recycling. The bowl's dimensions, measuring 480 mm in diameter and 2035 mm in length, provide ample capacity for effective processing. The 8-degree beach angle enhances the sedimentation process, while the 360-degree cake ports are equipped with wear protection to prolong the lifespan of the equipment. This thoughtful design minimizes downtime and maintenance, making it an invaluable asset for any drilling operation.

In addition to its robust performance features, the Alfa-Laval LYNX 40 is equipped with adjustable liquid dams that allow for precise control over the separation process. The 6-inch single lead STC-tiled conveyor ensures efficient transport of the separated solids, while the powerful 55 KW XP motor, operating at 460V/3/60/1750 RPM, provides reliable and consistent power. The 15 KW XP backdrive and the 6 kNm DD 52:1 gearbox further enhance the decanter's operational efficiency, ensuring that it can handle the rigorous demands of drilling mud processing. Safety is also a priority, with guards, a feed tube, and chutes included in the design to protect operators and maintain a safe working environment. The unitized design on a stand, complete with a control panel, simplifies installation and operation, making it an ideal choice for both new and existing drilling setups.
