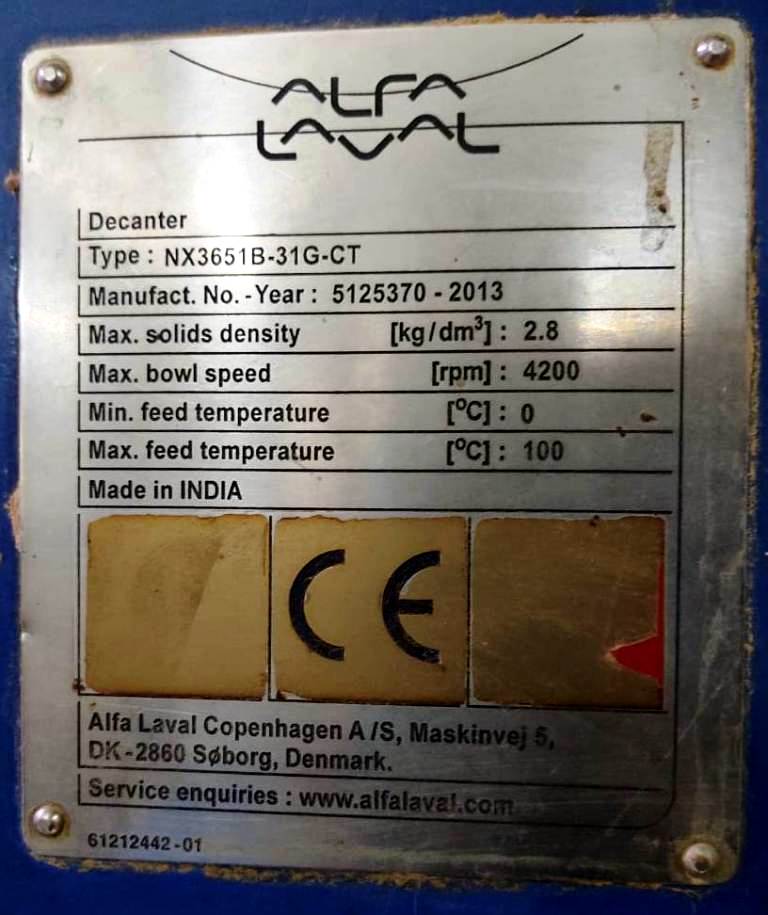

Alfa-Laval NX 3651B-31G-CT decanter centrifuge, 316SS.

Max bowl speed 4200 RPM, 3550 x G, 10 degree beach angle, 70mm single lead STC-tiled conveyor, 20 HP motor 460/3/60/1765 RPM, 7.5 HP backdrive, 1:52 DD 3.5 kNm gearbox, guards, feed tube, vibration switch/isolators, chutes and control panel with VFDs for both motors. 2013 vintage. Very good condition. Located in India. Equivalent to ALDEC 45.

The Alfa-Laval NX 3651B-31G-CT decanter centrifuge, 316SS, is engineered for high-performance separation processes, making it an ideal choice for various industrial applications. With a maximum bowl speed of 4200 RPM and a centrifugal force of 3550 x G, this decanter centrifuge efficiently separates solids from liquids, ensuring optimal product recovery and quality. The 10-degree beach angle enhances the separation process, allowing for effective discharge of solids while maintaining a high throughput. The unit is equipped with a 70mm single lead STC-tiled conveyor, which is designed to handle challenging materials while minimizing wear and tear, thus extending the operational lifespan of the equipment. The robust 20 HP motor, operating at 460V/3/60/1765 RPM, provides the necessary power to achieve these high speeds, while the 7.5 HP backdrive ensures smooth operation and reliability during the separation process.

Constructed from 316 stainless steel, the Alfa-Laval NX 3651B-31G-CT is built to withstand harsh industrial environments, making it suitable for applications in food processing, wastewater treatment, and chemical industries. The inclusion of a 1:52 direct drive gearbox with a torque rating of 3.5 kNm allows for efficient power transmission, reducing energy consumption while maintaining high performance. Safety features such as guards, a vibration switch, and isolators are integrated into the design to ensure safe operation and minimize maintenance requirements. Additionally, the control panel, equipped with variable frequency drives (VFDs) for both motors, provides precise control over the centrifuge's operation, allowing for adjustments to be made based on specific process needs. This equipment, manufactured in 2013 and in very good condition, is a valuable asset for any facility looking to enhance its separation capabilities.
