Alfa-Laval NX 716B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3100 x G, rated @ 80 GPM on light viscosity oils, 14 x 46" bowl, adjustable liquid ports, lined cake ports, 110mm single lead hardsurfaced conveyor, 15 KW motor 380/3/50/1450


Alfa-Laval AVNX 419B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3100 x G, 20 deg beach angle, bowl ID 14 x 46" (353 x 1160mm), 70mm single lead hardsurfaced conveyor, 2.5 kNm 159:1 gearbox, 14 KW motor 440/3/60, 4 KW backdrive, guards, fee


Alfa-Laval ALDEC 404 decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3100 x G, rated @ 80 GPM on light viscosity oils, 14 x 46" bowl ID, adjustable liquid ports, lined cake ports, 110mm single lead hardsurfaced conveyor, 22 KW motor 380/3/50, 1


Alfa-Laval UVNX 716B-11G tricanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 110mm single lead hardsurfaced conveyor, 15 KW motor 460/3/60/1800 RPM, 159:1 gearbox with TA assembly and limit switch, feed tube, guards and vibration isolators. Unitized on


Alfa-Laval AVNX 416B-31G decanter centrifuge, 316SS.

Max bowl speed 3250 RPM, 2100 x G, adjustable liquid ports, lined cake ports, 110mm single lead hardsurfaced conveyor, 11 KW 380/690/3/50/1450 RPM, 159:1 2.5 kNm gearbox, feed tube and vibration isola


Alfa-Laval AVNX 616B-31G decanter centrifuge, 316SS.

Max bowl speed 3250 RPM, 2100 x G, adjustable liquid ports, lined cake ports, 110mm single lead hardsurfaced conveyor, 11 KW 380/690/3/50/1450 RPM, 159:1 2.5 kNm gearbox, feed tube and vibration isola


(2) Alfa-Laval FOODEC 310M decanter centrifuges, 316SS.

Max bowl speed 4200 RPM, 3550 x G, pressure discharge of liquid, 125mm single lead Esbjerg polished conveyor, 30 HP direct drive 460/3/60/1800 RPM with VFD, guards, 52:1 3.5 knm gearbox, 15 HP backdr

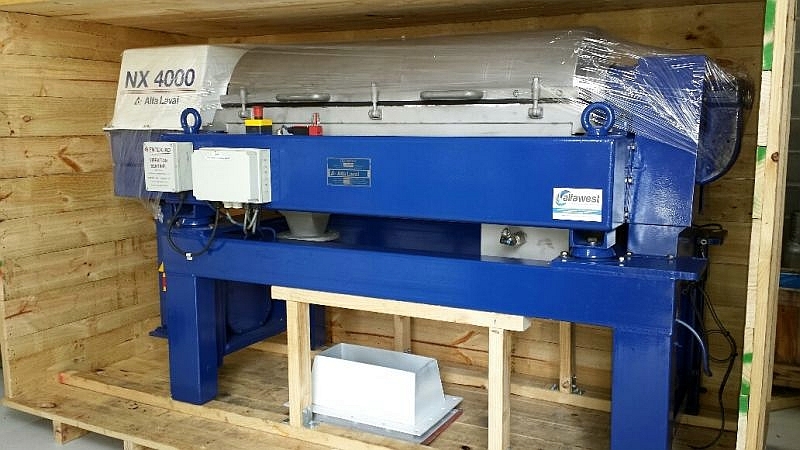

NEW: Alfa-Laval NX 418S-31G sanitary decanter, 316SS.

Max bowl speed 4000 PRM, 3158 G's, liquid discharged under pressure, 70mm polished Esberg conveyor, 40 HP motor 230/460/3/60/1800 RPM, 5 HP vari-speed backdrive, 159:1 gearbox, guards, vibration

placeholder

Alfa-Laval NX 418B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3158 G's, liquid discharged by gravity, 110mm hardsurfaced Esbjerg conveyor, 40 HP motor 230/460/3/60/1750 RPM, 15 HP backdrive, guards, 159:1 gearbox, feed tube, chutes


Alfa-Laval NX 418S-31G tricanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3158 G's, both liquid phases discharged under pressure, 110mm hardsurfaced Esbjerg conveyor, 30 KW motor 400/3/50/1495 RPM, 2.5 kNm 159:1 gearbox, guards, 4 KW backdrive, feed


Alfa-Laval NX 418B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3158 G's, liquid discharged by gravity, 110mm hardsurfaced Esbjerg conveyor, 30 HP motor 380/3/50/1495 RPM, 5.5 KW backdrive, guards, 159:1 gearbox & feed tube, uniti


Alfa-Laval NX 418B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3158 G's, liquid discharged by gravity, 110mm hardsurfaced Esbjerg conveyor, 40 HP motor 575/3/60/1775 RPM, pully backdrive, guards, 159:1 gearbox & feed tube, uniti


Alfa-Laval LYNX 300 Drilling Mud decanter, 316SS.

Max bowl speed 4200 RPM, 3550 G's, 6 deg beach, 360 degree cake ports, adjustable liquid dams, feed rate 60 CMPH (260 GPM). 110mm single lead STC-tiled conveyor, 50 HP XP motor 400/50-460/60, 30 HP XP


Alfa-Laval KWNX 418S-31G decanter centrifuge, 316SS.

Max bowl speed 4000 PRM, 3158 G's, liquid discharged under pressure, 110mm STC-tiled conveyor & cake ports, no main drive, 2.5 KNM 159:1 gearbox, DC backdrive, guards, feed tube and vibration switch/i


Alfa-Laval MRNX 418B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 PRM, 3158 G's, CIP/sanitary design. 70mm single lead bare conveyor, 37 KW motor 230/460/3/60/1800 RPM, 5 HP vari-speed backdrive, both with VFDs, 159:1 gearbox, guards, feed tube,


Alfa-Laval UVNX 418B-11G tricanter, 316SS.

Max bowl speed 4000 RPM, 70mm single lead hardsurfaced conveyor, single row of lined cake ports, 160:1 gearbox, 22 KW motor 380/3/50/1450 RPM, 5 HP fixed speed backdrive, feed tube, vibration switch/


Alfa-Laval NX 718B-31G decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3158 G's, liquid discharged by gravity, 110mm hardsurfaced Esbjerg conveyor, 22 KW motor 380/3/50/1450 RPM, 5.5 KW backdrive, guards, 159:1 gearbox and feed tube, unitized on


Alfa-Laval NX 418 decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3180 x G, adjustable liquid dams, wear liners on feed zone and cake ports, 110mm single lead STC tiled conveyor, 18 KW motor 400/3/50/3000 RPM, gearbox, feed tube, guards, vib


Alfa-Laval UVNX 418B-11G tricanter, 316 SS.

Max bowl speed 4000 RPM, 70mm single lead hardsurfaced conveyor, single row of lined cake ports, 160:1 gearbox, 22 KW motor 380/3/50/1450 RPM, 5 HP fixed speed backdrive, feed tube, vibration switch/


Alfa-Laval NX 418 decanter centrifuge, 316SS.

Max bowl speed 4000 RPM, 3180 x G, adjustable liquid dams, wear liners on feed zone and cake ports, 110mm single lead STC tiled conveyor, 50 HP motor 460/3/60/1750 RPM, 159:1 gearbox, 30 HP backdrive,
