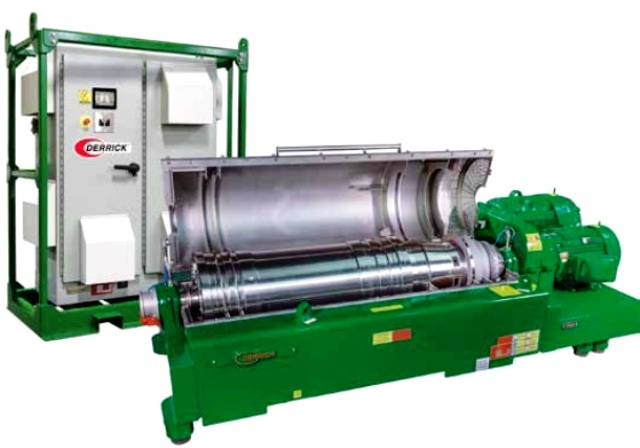

NEW: Derrick DE-7200 VFD XP decanter centrifuge, 316SS.

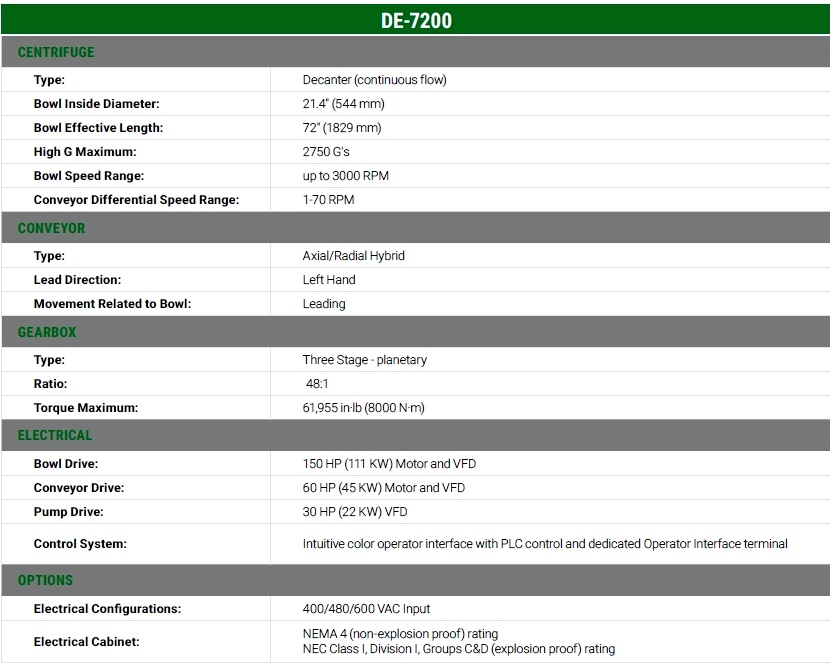

Max bowl speed 3000 RPM, 2750 x G, 21.4 x 72" bowl ID, rated @ 500 GPM max. 360 degree cake ports with wear liners, adjustable liquid ports, 6.25" single lead STC-tiled axial/radial conveyor and carbide-lined feed nozzles. 150 HP XP motor 460/3/60, 60 HP backdrive, 8 kNm 48:1 planetary gearbox with overload clutch, feed tube, guards, vibration switch and isolators, PLC control panel with VFDs for both motors.

The NEW: Derrick DE-7200 VFD XP decanter centrifuge, 316SS. is engineered for high-performance separation processes, making it an ideal choice for industries requiring efficient solid-liquid separation. With a maximum bowl speed of 3000 RPM and the ability to generate up to 2750 x G, this centrifuge is designed to handle substantial volumes of material, rated at a maximum throughput of 500 GPM. The robust 21.4 x 72" bowl ID facilitates effective separation, while the 360-degree cake ports equipped with wear liners ensure durability and longevity, even in the most demanding applications. The adjustable liquid ports provide versatility, allowing operators to fine-tune the separation process to meet specific operational requirements.

The Derrick DE-7200 VFD XP decanter centrifuge is powered by a 150 HP XP motor operating at 460V, 3-phase, 60 Hz, complemented by a 60 HP backdrive for enhanced operational efficiency. The advanced 8 kNm 48:1 planetary gearbox with an overload clutch ensures reliable torque transmission and protection against unexpected overload conditions. This centrifuge also features a 6.25" single lead STC-tiled axial/radial conveyor and carbide-lined feed nozzles, which contribute to optimal material handling and reduce wear over time. Safety and operational integrity are prioritized with the inclusion of a vibration switch and isolators, while the PLC control panel with variable frequency drives (VFDs) for both motors allows for precise control and monitoring of the centrifuge's performance, ensuring that it operates at peak efficiency.

Designed with a focus on ease of maintenance, the Derrick DE-7200 VFD XP decanter centrifuge allows for straightforward access to critical components, minimizing downtime and facilitating routine servicing. The use of 316 stainless steel in its construction not only enhances corrosion resistance but also ensures compliance with stringent sanitary standards, making it suitable for a wide range of applications, including food processing, pharmaceuticals, and wastewater treatment. By investing in the Derrick DE-7200, operators can expect improved separation efficiency, reduced operational costs, and a reliable solution that meets the demands of modern industrial processes.
