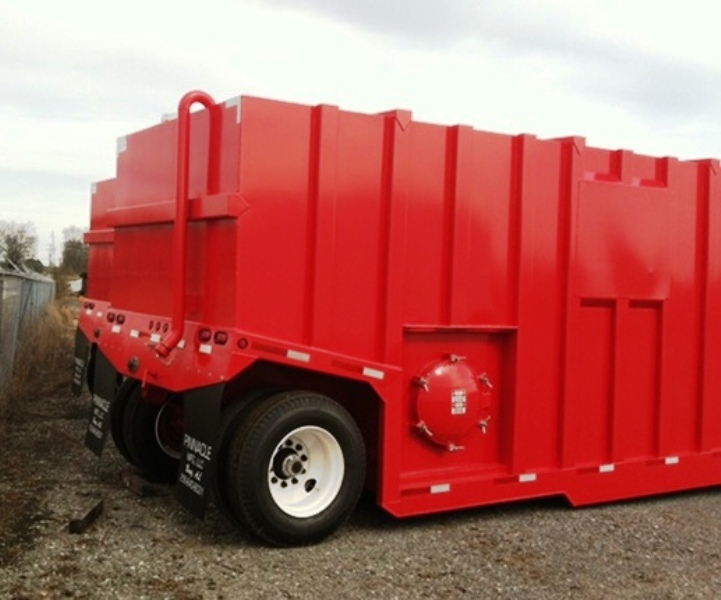

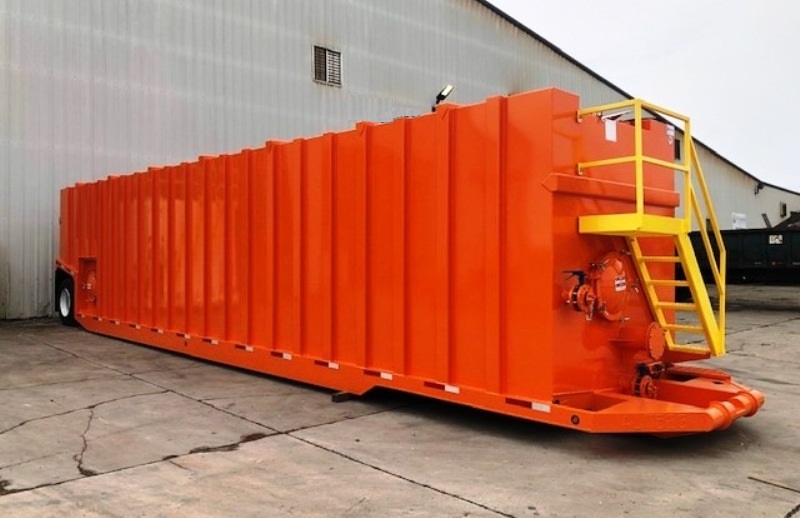

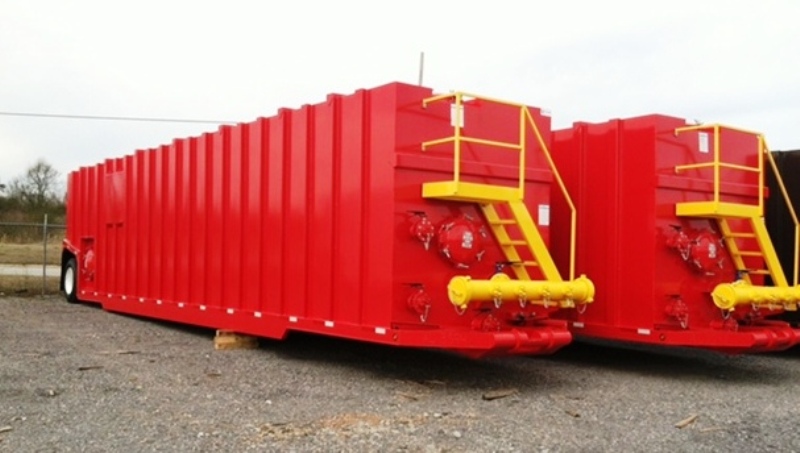

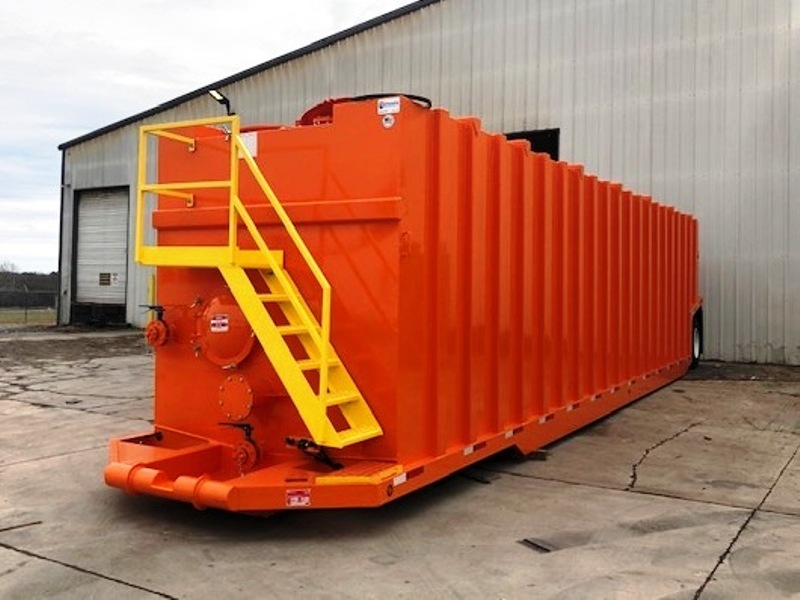

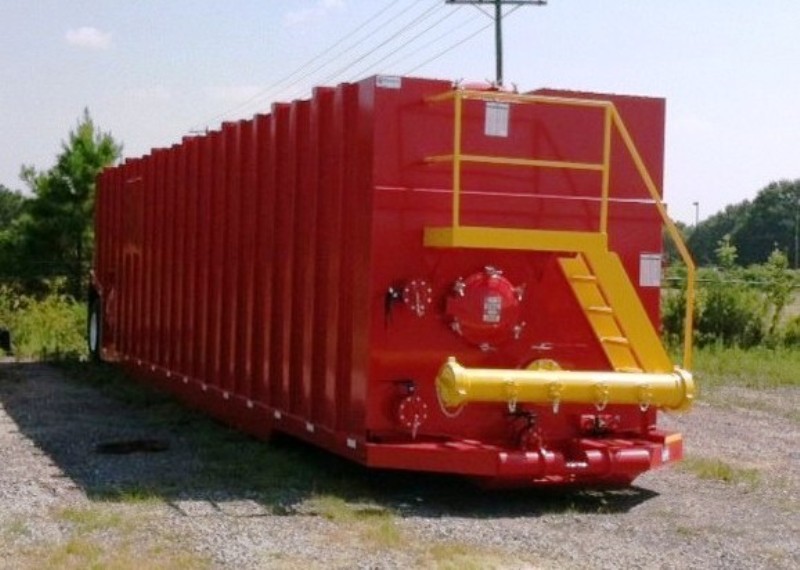

NEW: Pinnacle 500 barrel corrugated flat top frac tanks.

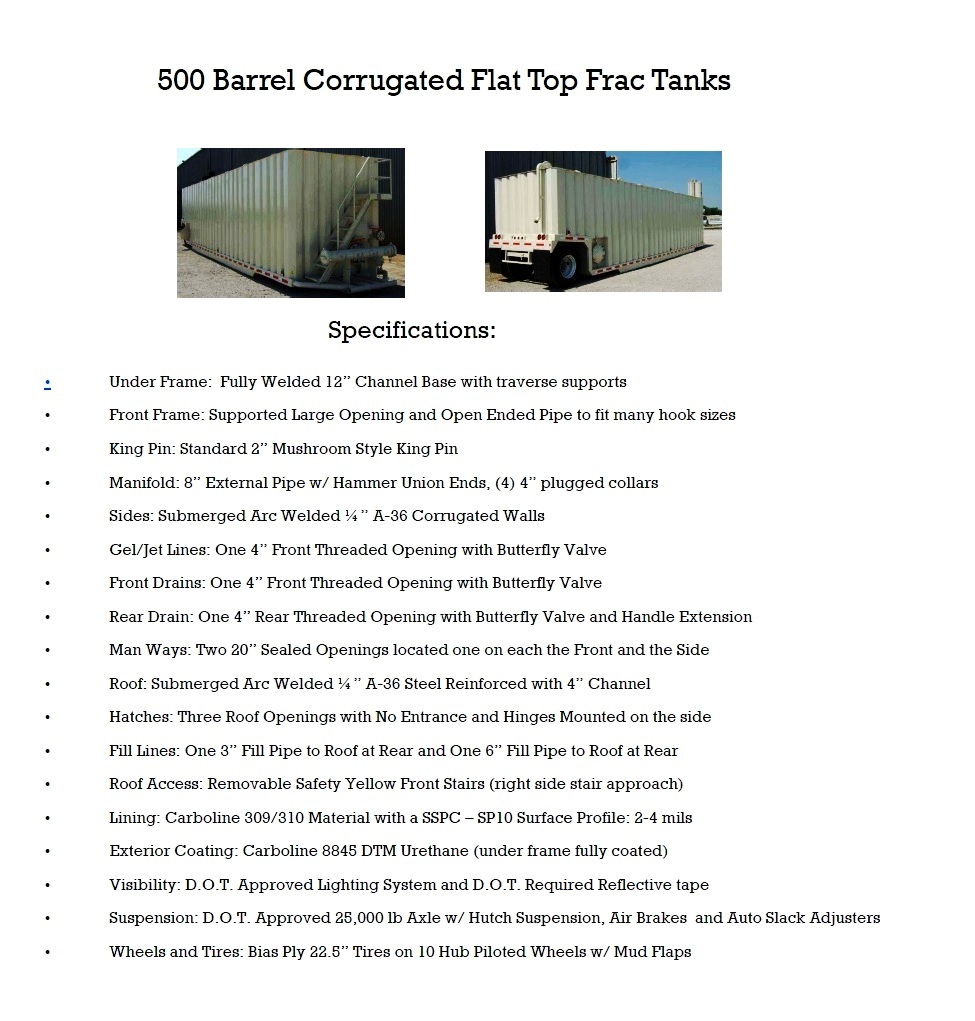

21,000 gallon (500 bbl) capacity, 1/4" plate sides, floor and roof, smooth walls w/formed channel exterior braces - no internal rods or corrugated walls, V-bottom floor, 3" front feed line, 4" butterfly valve connections - front drain, front mid-high and rear clean-out, 4" blind flange connection on roof (near manway), 4 manways - three 20": front, roof and rear, access stairs on passenger side w/fixed, non-folding handrail, liquid level gauge with 2 SS float balls, pressure/vacuum valve & interior coated w/solids epoxy.

The NEW: Pinnacle 500 barrel corrugated flat top frac tanks are engineered for optimal performance and reliability in demanding industrial applications. With a substantial capacity of 21,000 gallons, these tanks are designed to handle a variety of fluids, making them ideal for hydraulic fracturing operations and other fluid storage needs. The construction features robust 1/4" plate sides, floor, and roof, ensuring durability and resistance to wear over time. The smooth walls, combined with formed channel exterior braces, eliminate the need for internal rods or corrugated walls, which can complicate cleaning and maintenance. This design not only enhances the tank's structural integrity but also simplifies the process of emptying and cleaning, allowing for quicker turnaround times between uses.

The tank's V-bottom floor design facilitates efficient drainage, ensuring that all contents can be easily evacuated without leaving residual fluid behind. The 3" front feed line and 4" butterfly valve connections provide versatile options for fluid transfer, while the strategically placed clean-out ports—located at the front, mid-high, and rear—allow for thorough cleaning and maintenance. Additionally, the 4" blind flange connection on the roof, positioned near the manway, offers further flexibility for integrating additional equipment or monitoring systems. Safety and accessibility are prioritized with four manways—three 20" openings located at the front, roof, and rear—alongside fixed access stairs on the passenger side, complete with a non-folding handrail. This thoughtful design ensures that operators can safely access the tank for inspections or maintenance tasks.

To enhance operational efficiency, the NEW: Pinnacle 500 barrel corrugated flat top frac tanks are equipped with a liquid level gauge featuring two stainless steel float balls, allowing for accurate monitoring of fluid levels. The inclusion of a pressure/vacuum valve further ensures safe operation by maintaining optimal pressure levels within the tank. The interior is coated with a solids epoxy, providing an additional layer of protection against corrosion and wear, thereby extending the lifespan of the tank. Overall, these frac tanks are a reliable solution for companies seeking efficient, durable, and easy-to-maintain fluid storage options.
