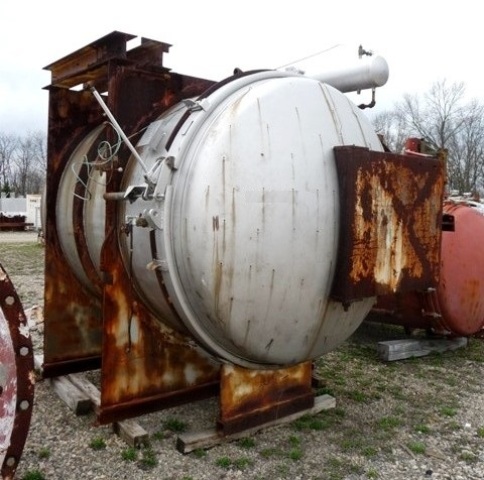

Devine 60" x 12' horizontal autoclave, CS.

Rated @ 168 PSI @ 300F, quick opening ring lug lock door, digital control panel, National Board stamped. 1969 vintage. 0.5" thick shell. Very good condition.


Gaston County 72" x 7' horizontal autoclave, 304 SS.

Rated 55 PSI @ 300F, full vacuum jacketed chamber, air operated quick opening door, internal track, on saddles super heater rated 125 PSI @ 353F, CS steam accumulator tank with controls. 1972 vintage. National Board #9047. Very good condition.

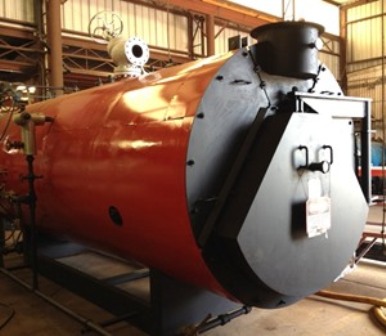

Donlee/York SPHV-300-N steam boiler.

Rated @ 150 PSI, 300 HP, natural gas-fired with full gas train and gas regulator mounted. 2000 vintage. Reconditioned to "as new" in 2014 with full mechanical warranty. No water makeup tank or conditioner.


APV Anhydro spray drying plant for milk powder, SS.

APV Anhydro Agglomerator rated @ 1 TPH of spray dried skim or whole milk powder. Can also dry whey concentrat or butter milk. Includes internal & external fluid beds drying chamber with explosion doors, blowers, motors, pumps, piping, controls, etc. Will be modified per user requiremen


NEW: 400 GPM Dissolved Air Flotation System, 304SS.

Rated @ 400 GPM, 304SS epoxy coated vessel, 304SS scrapers, acetyl chain, chemical pumps, floc tube, air generator, on-board chemical tanks, sludge holding tank color touch-screen PLC controls. 20 year warranty. 5 day start-up service included. 14 week delivery ARO.


(2) FT CT6-40 Centritherm evaporators, 316SS.

Thin-film, single-effect, spinning cone evaporators designed for highly viscous slurry to 20,000cP. Rated @ 800 LPH (12-65 Brix). Complete w/frame & pump. Excellent condition. FCA Mexico.


(2) T & C Stainless 120 liter SS reactors on CIP skid.

Dished top & bottom, rated @ 40PSI full vacuum internal Allegheny Bradford U-tube heat exchanger, 18" x 28" rated @ 150 PSI @ 350F shell & tubes. 2001 vintage.


ABEC 400 liter fermenter/bioreactor, 316L SS.

Approx. 22" diameter x 60" straight side, dished top, dished bottom. Rated 40psi @ -20 to 300F internal, full vacuum @ 15psi. 304SS dimple jacket rated 60psi @ -20 to 300F, full vacuum @ 15psi. Bottom entering agitator, approx. 1.5" dia shaft with 3-tier, 9" dia (6) blade impellers


Dorr-Oliver 12" x 1' rotary vacuum filter.

3 sq ft area, knife discharge, .25 HP XP drum drive, on stand.


Alfa-Laval heat exchanger, model M10-MK2, plates only.

76 channel plates + 4 end plates, Hastelloy C-276. Prior use: Lube oil. Excellent condition. FCA India. No pitting, no holes, no cracks and no deformities on the whole surface. Also, 40 P-22 plates in Titanium available.


Alfa-Laval plate heat exchanger, model M15-MFM8.

580 sq ft, 316SS, gasketed. Max flow rate 2000 GPM. 89 plates, 24" wide, rated at 150 PSI @ 210F. (2) 6" inlets, (2) 6" outlets. Expandable CS frame. Built 2003.


(4) BWS Supraton 625.01 high shear in-line homogenisers.

Max rotor speed 1200 RPM, rated @ 100 M3/h (440 GPM). Will handle up to 100,000 cP product viscosity, 20 mm feed particle size, 200 C (390 F) temperature & 5 bar (70 PSI) pressure. 300 HP Baldor motor 2300/4160/3/60/ 1790 RPM with fluid clutch and guard unitized on skid. Two with d


NEW: Agrex DG 20 Corn Degerminator.

Rated @ 2000 kg/h (5000 PPH), 38 KW motor 400/3/50/1480 Reduces corn into medium and course grits. FCA Europe.


Ross LDM-2 double planetary mixer, SS.

Working capacity is 2 gallons, rated for full vacuum, jacketed bowl, hand tilt, complete on base with 1 HP XP variable speed drive 115/230/3/60, 20-100 orbital speed 26 to 130 RPM agitator, vacuum cover. Very good cond.


Brown 303 double screw pulper/finisher press, SS.

Screw finishers are very well suited for the citrus juice industry. They separate the fibrous pulp from the liquid stream. Max speed 525 RPM, rated at 250 GPM. Cylinder screen chamber: 12" dia x 78" L. Two sections of screening. 1st section Tyler mesh size 8, 2nd sectio Tyler mesh


Centrifugal pump for feeding dairy separator.

2 HP motor 380/460/3/50/60/1440/1740 RPM. Excellent condition.


(2) Moyno progressive cavity pumps - 1W022G1CDQDAX.

Rated @ 70 GPM @ 30 PSI w/Eurodrive vari-speed motor. Prior use: Wastewater. 1992 vintage. Good operating condition. Includes spare stators.


(3) Moyno CDQ progressive cavity pumps.

Each with Reeves varidrive. 10, 5 & 2 HP motor. Very good condition.


Cherry Burrell 1500 G (5000 L) SANITARY reactor, 316L SS.

Rated 45psi/FV @ 350F internal, 150psi/FV @350F jacket. Has bottom-mounted mixer drive, but paddles not include 2005 vintage. Excellent condition.


Hamilton Kettle 1500 G (5000 L) sanitary reactor, 316 SS.

Rated 50psi/FV @ 281F internal, 150psi/FV @300F jacket. Dimple jacket is 304SS on shell and bottom head. Vessel is 6'4" diameter x 5'7" straight side w/welded dished top, slight cone bottom, 0.25" thick side wall, 0.220" thick top head & 0.218" thick bottom head. Vessel and jacket are


Baeuerl Morris 1500 G (5000 L) reactor, 316L SS.

Rated 30psi/FV @ 600F, 150psi/FV @353F in the jacket. Approx 78" diameter x 74" T/T. Jacket is 304SS 1/2 pipe with separate zones on the sidewall and bottom head. Has 2" internal coil. Has top opening to mount agitator (agitator not included). Very good condition.


NEW: Pinnacle 500 barrel corrugated flat top frac tanks.

21,000 gallon (500 bbl) capacity, 1/4" plate sides, floor and roof, smooth walls w/formed channel exterior braces - no internal rods or corrugated walls, V-bottom floor, 3" front feed line, 4" butterfly valve connections - front drain, front mid-high and rear clean-out,


(22) Dragon Products 500 barrel flat top frac tanks (2011).

21,000 gallon (500 bbl) capacity, 1/4" plate sides, floor and roof, smooth walls w/formed channel exterior braces - no internal rods or corrugated walls, V-bottom floor, 3" front feed line, 4" butterfly valve connections - front drain, front mid-high and rear clean-out,


Tetra Pak C10-SR 45,000 LPH cheese milk pasteurizing plant.

Complete pasteurization unit for cheese milk with whey cooler and BMRPX 918 HGV bactofuge 80 KW motor 380/3/50 Plate heat exchangers, pumps, all SS piping, valves,VFD controls, tools, water harness & manuals. 2004 vintage. Excellent condition. FCA Europe.
