Description

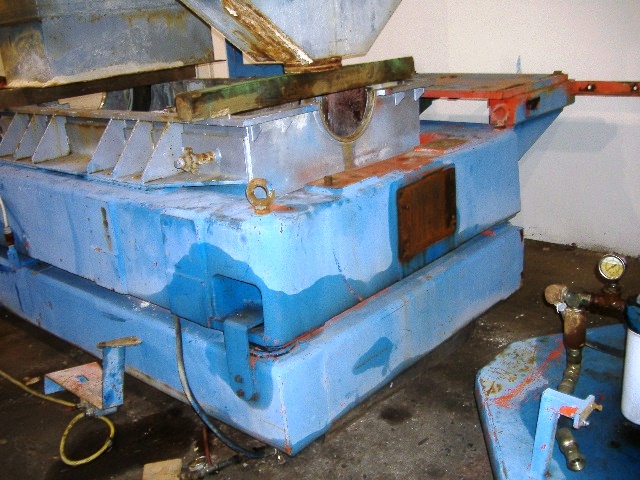

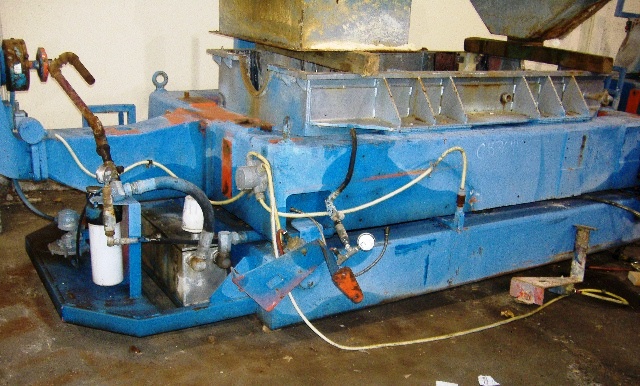

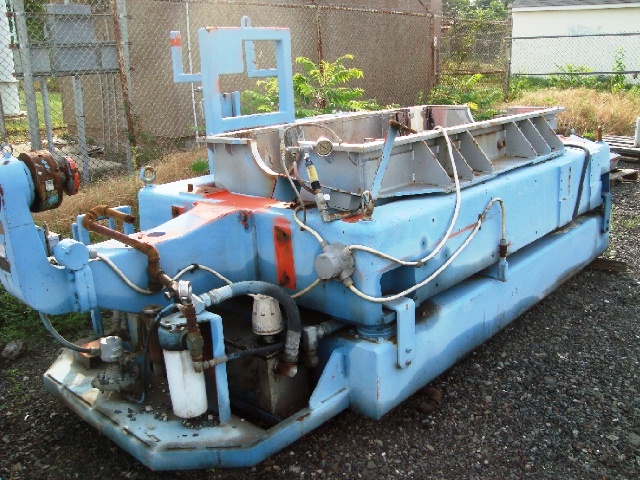

The Sharples P5000 Super-D-Canter centrifuge is designed for efficient solid-liquid separation in various industrial applications. This model, identified by Stock Number [not provided] and Serial Number [not provided], features a maximum bowl speed of 3000 RPM and a centrifugal force of 3190 x G, making it suitable for processing large volumes of materials. The P5000 is equipped with adjustable plate dams and hogged-out cake ports, which facilitate optimal cake discharge and enhance operational efficiency.
This centrifuge is powered by a robust 200 HP motor operating at 460V, 3-phase, 60 Hz, with a speed of 1785 RPM. The unit includes an 8.5-inch single lead STC-tiled conveyor and a 47.5:1 gearbox, ensuring reliable performance during operation. Although the machine is in very good condition, it is important to note that it does not include a belt guard, lube system, feed tube, backdrive, bowl shell, or bowl extension, indicating that it may require additional components for complete functionality.
Primary Use
Used for separating solids from liquids in various industrial processes.
Technical Specifications
- Bowl Speed: 3000 RPM
- Centrifugal Force: 3190 x G
- Rated Flow: 110 GPM
- Motor Power: 200 HP
- Motor Voltage: 460V
- Motor Phase: 3
- Motor Frequency: 60 Hz

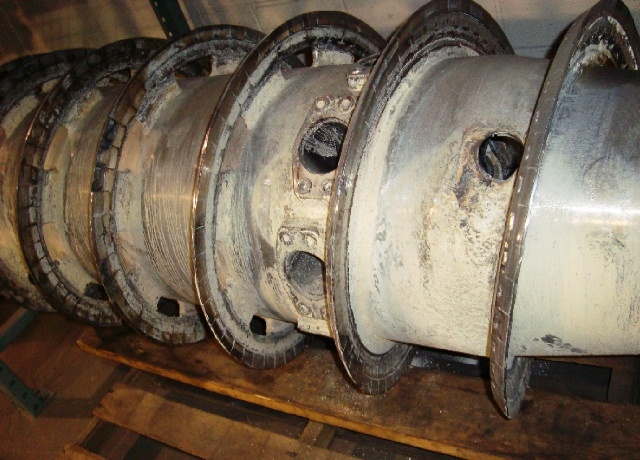

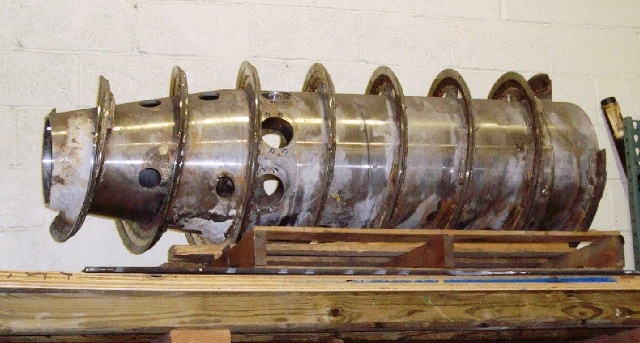

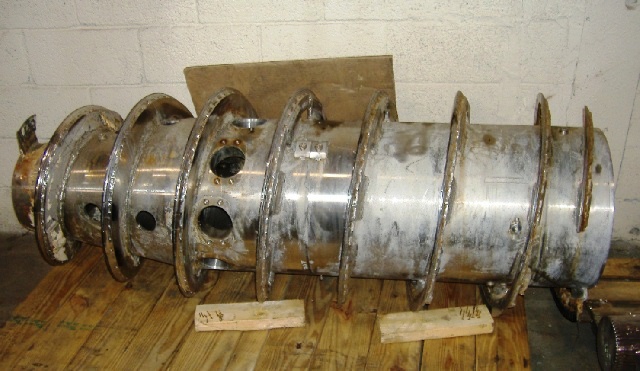

- Conveyor Diameter: 8.5 inches
- Gearbox Ratio: 47.5:1
Key Features
- Bowl Speed
- Centrifugal Force
- Motor Specifications
- Conveyor Design
- Gearbox Configuration
Applications
- Chemical processing
- Wastewater treatment
- Food processing
- Pharmaceutical manufacturing
- Mineral processing
Product Details
The Sharples P5000 is constructed from 316/317 stainless steel, providing corrosion resistance and durability. Its design includes features such as adjustable plate dams and hogged-out cake ports for efficient operation and maintenance.
