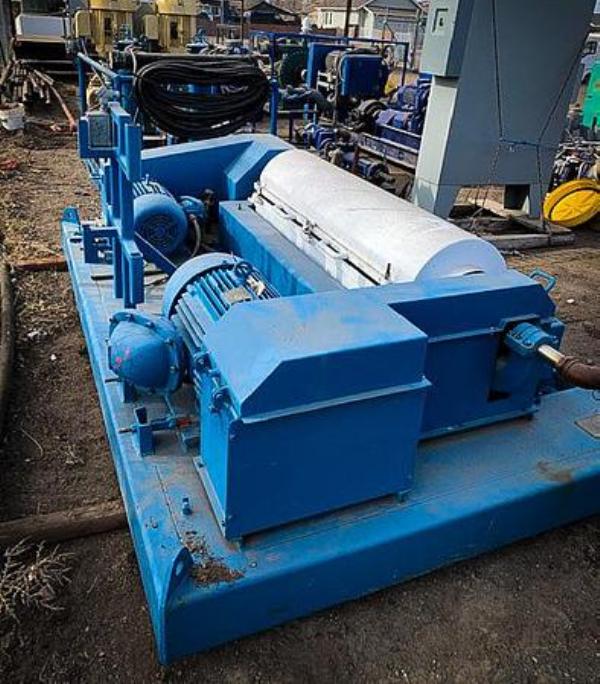

Swaco CD 518 HV oilfield decanter centrifuge skid, 316SS.

Max bowl speed 3200 RPM, 1975 Gs, 14" x 57.5" bowl ID. 4.3" single lead STC-tiled conveyor, 50 HP motor 460/3/60/1750 RPM, 15 HP backdrive, both fully variable, 57:1 gearbox, fully variable feed pump, guards, feed tube, vibration switch/isolators, unitized on oilfield skid. VFD control panel with HMI touch screen. Reconditioned and unused since.

The Swaco CD 518 HV oilfield decanter centrifuge skid, 316SS, is engineered for high-performance separation in demanding oilfield applications. With a maximum bowl speed of 3200 RPM and the capability to generate 1975 Gs, this centrifuge is designed to efficiently handle a variety of drilling fluids, ensuring optimal solids removal and fluid recovery. The 14" x 57.5" bowl ID provides a significant surface area for sedimentation, enhancing the centrifuge's overall efficiency. The single lead STC-tiled conveyor, measuring 4.3 inches, works in tandem with the powerful 50 HP motor, which operates at 460V, 3-phase, 60Hz, and 1750 RPM, to deliver consistent performance. The unit is equipped with a 15 HP backdrive, both of which are fully variable to accommodate different operational requirements, ensuring that users can tailor the centrifuge's performance to their specific needs.

The robust construction of the Swaco CD 518 HV is complemented by its 57:1 gearbox, which allows for precise control over the centrifuge's operation. This feature is particularly beneficial in oilfield applications where varying fluid characteristics necessitate adjustments in speed and torque. Additionally, the fully variable feed pump ensures that the flow rate can be optimized for maximum efficiency, reducing waste and improving overall productivity. Safety and reliability are paramount in industrial settings, and this centrifuge is equipped with guards, a feed tube, and vibration switch/isolators to protect both the equipment and personnel. The unitized design on an oilfield skid facilitates easy transportation and installation, making it an ideal choice for mobile drilling operations.

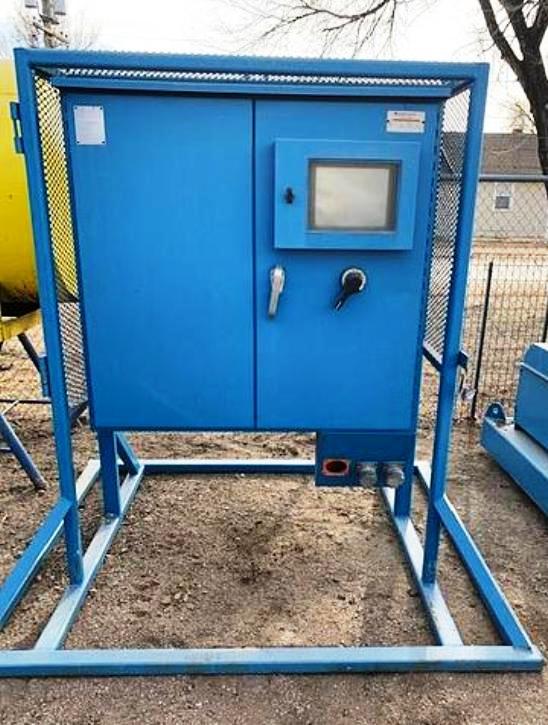

The Swaco CD 518 HV also features a VFD control panel with an HMI touch screen, providing operators with user-friendly access to real-time data and control settings. This advanced control system allows for easy monitoring and adjustment of the centrifuge's parameters, ensuring that operators can respond swiftly to changing conditions on-site. With its reconditioned status and unused condition since refurbishment, this centrifuge represents a reliable investment for companies looking to enhance their drilling operations with state-of-the-art separation technology.
